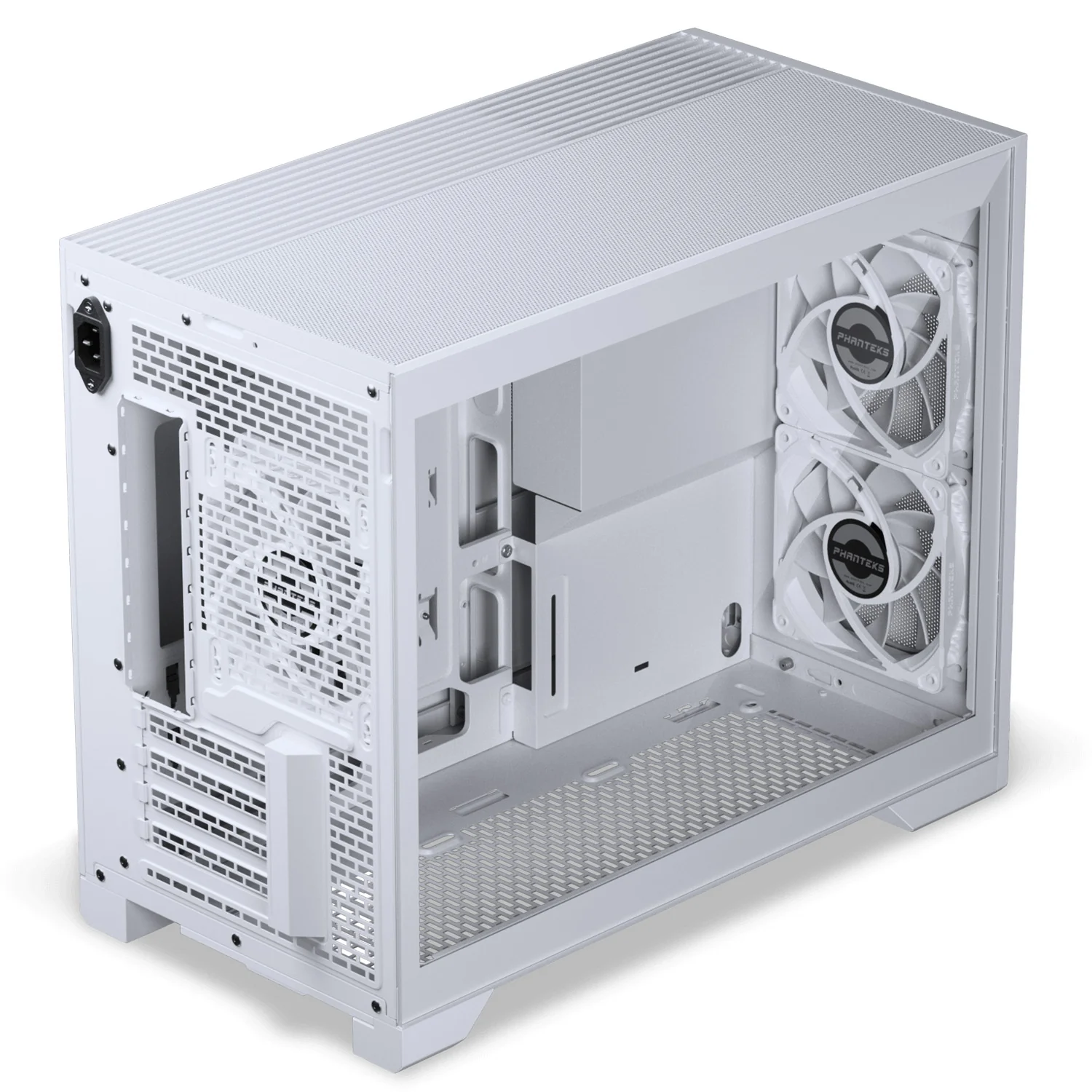

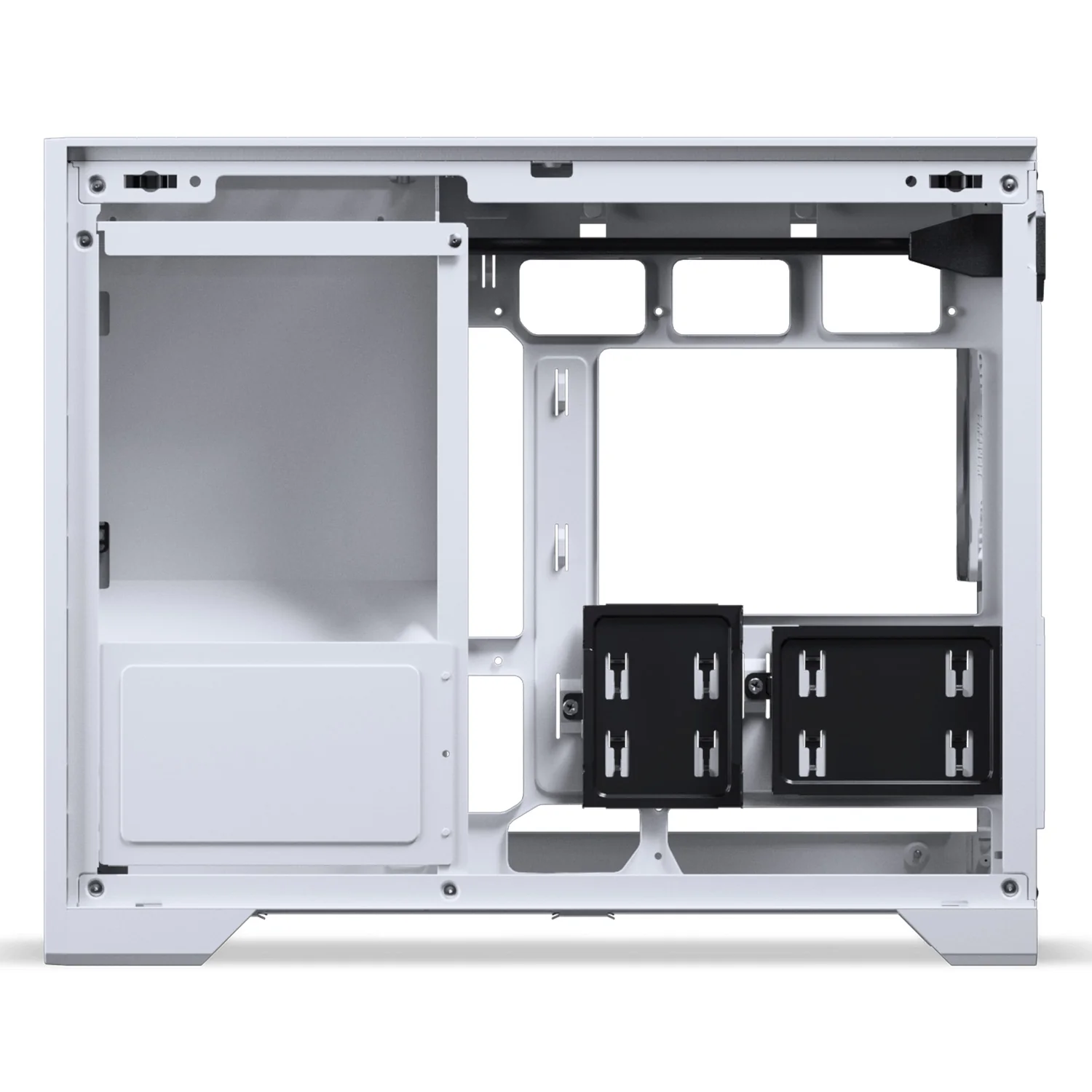

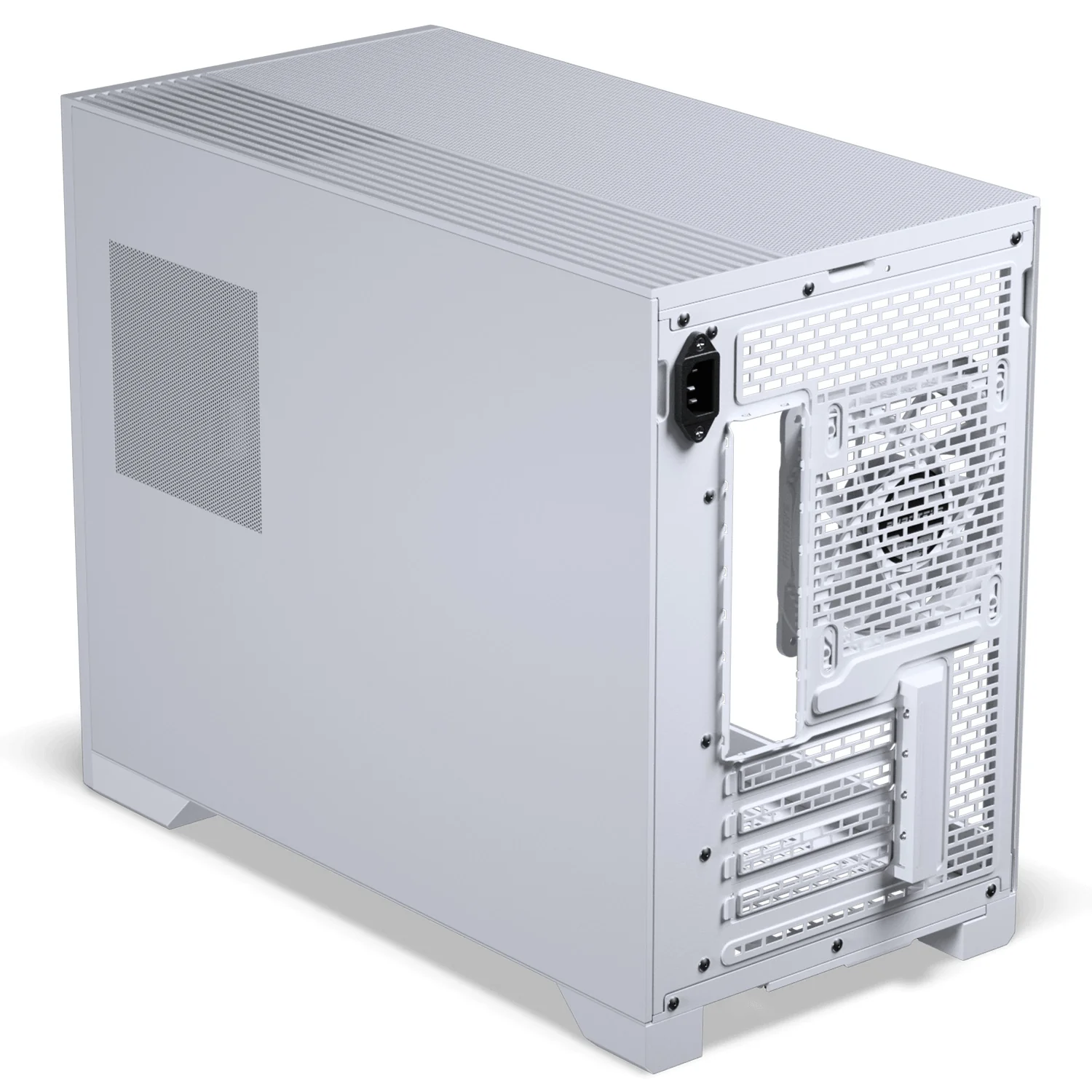

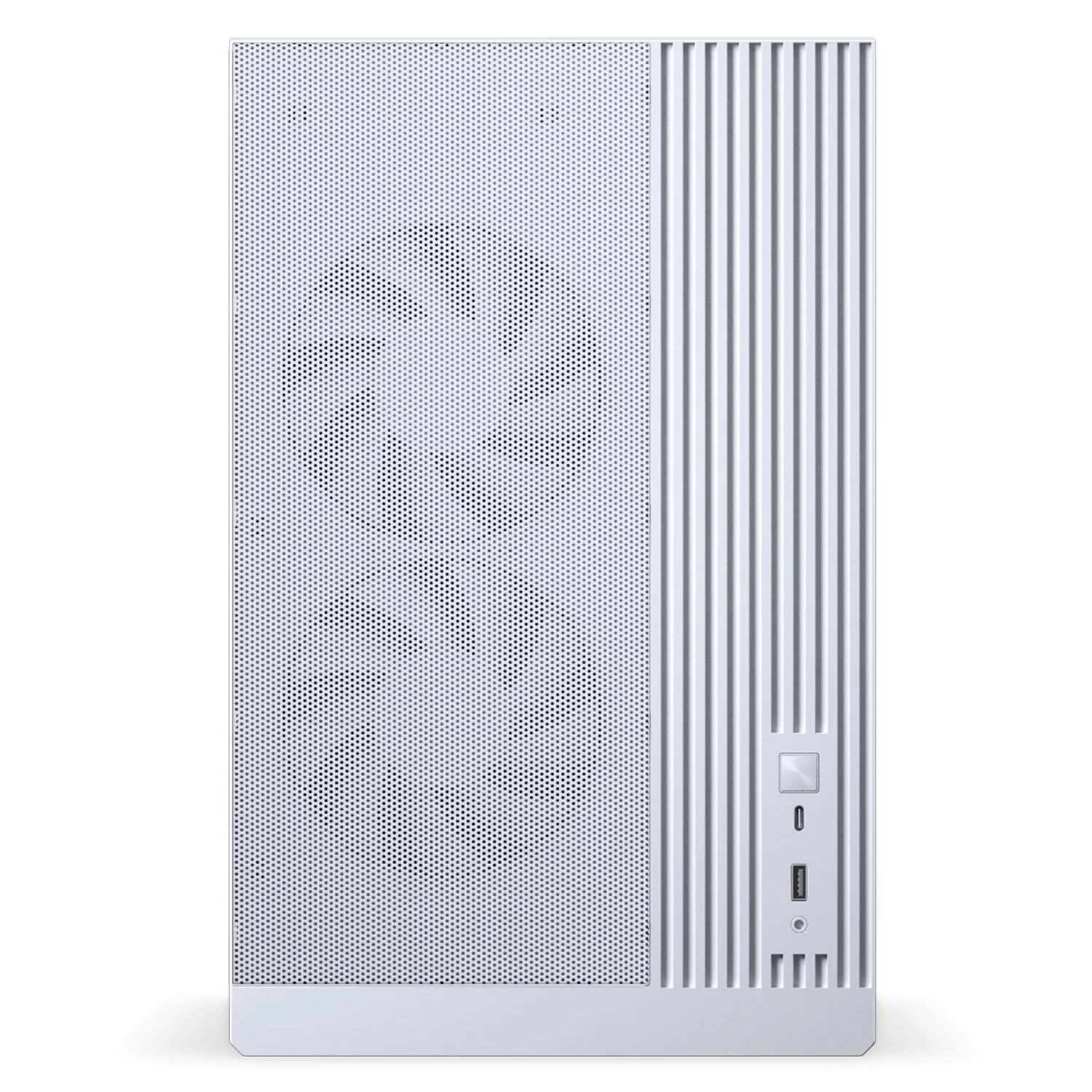

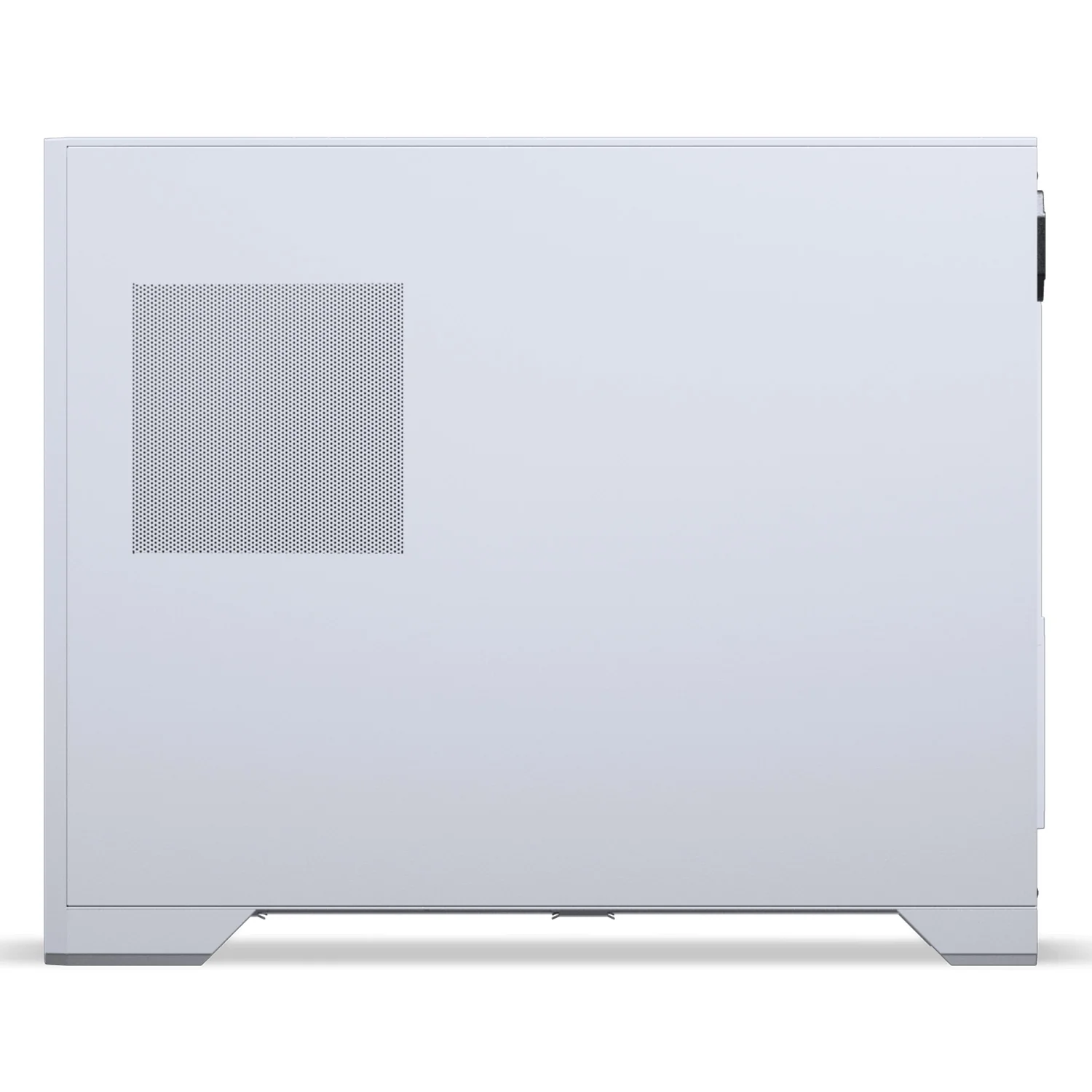

Phanteks XT M3 White
The XT M3 is a powerful yet compact micro-ATX chassis ready for any gaming PC configuration. Plenty of fan positions, including, triple 120 fan positions in the bottom and dedicated radiator space in the top provide plenty of cooling options within its sleek and clean appearance.
With its innovative lay-out and strikingly clean design, the XT M3 is a micro-ATX powerhouse ready for any cooling challenge.Ā
- Compact Micro-ATX gaming chassis with powerful cooling options
- Includes 3x M25 120mm DRGB fans
- Dedicated 360mm radiator space in the top of the chassis
- Triple fan locations in the bottom for direct GPU cooling
- Ample space for cable management and Rear-Connect MainboardsĀ
|
Case Specifications |
||
|
Dimension |
460 x 235 x 370 mm /18.1 x 9.3 x 14.6 in (DxWxH) |
|
|
Form Factor |
Compact Micro-ATX Tower |
|
|
Material(s) |
Steel Chassis, Tempered Glass Window, ABS Plastic |
|
|
Mainboard Support |
Micro-ATX, Mini-ITX |
|
|
Rear Connect Motherboard |
Micro-ATX |
|
|
Front I/O |
1x USB 3.0, 1x USB-C 3.2 Gen2x2, Microphone/Headphone Combo, Power Button |
|
|
Connectors |
Front IO, HD-audio, USB 3.0, USB 3.2 Gen2 Type-E |
|
|
Ā |
Ā |
|
|
Expansion & Drive Bays |
||
|
Expansion Slots |
4 |
|
|
Vertical GPU Support |
No |
|
|
Internal 3.5ā |
1x (1x included) |
|
|
Internal 2.5ā |
2x (2x included) |
|
|
Ā |
||
|
Cooling |
120mm (Fan) |
140mm (Fan) |
|
Top |
3x |
- |
|
Front |
2x |
- |
|
Rear |
1x |
- |
|
Bottom |
3x |
Ā |
|
Ā |
Ā |
Ā |
|
Liquid Cooling |
120mm (Radiator) |
140mm (Radiator) |
|
Top |
Up to 360 |
- |
|
Front |
- |
- |
|
Rear |
- |
- |
|
Bottom |
- |
- |
|
Ā |
||
|
Clearance |
||
|
Graphic Card Length |
430mm (Without front fans installed) |
|
|
CPU Cooler Height |
175mm |
|
|
PSU Length |
150mm |
|
|
Top Radiator |
410 x 122 x 60mm |
|
Ā
