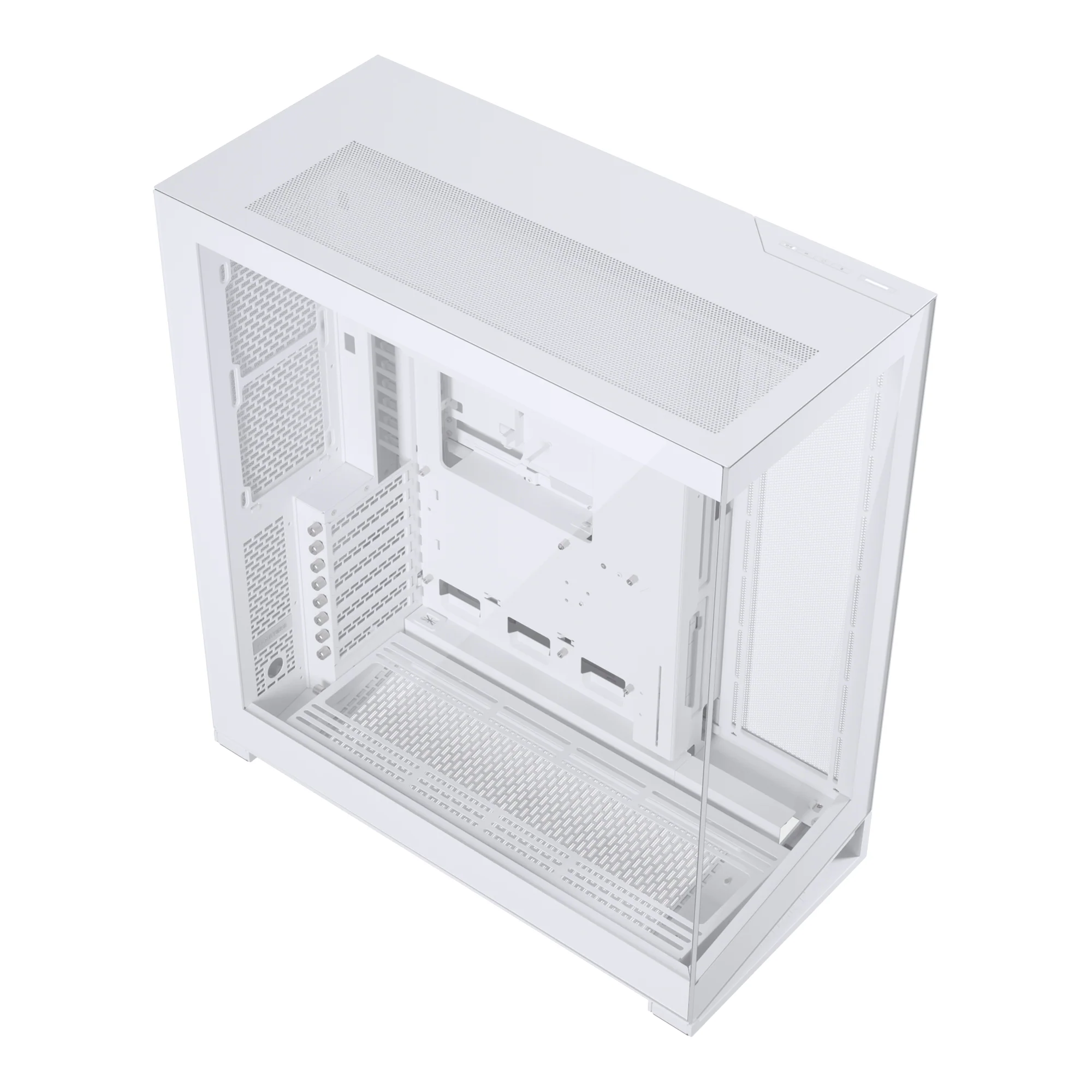

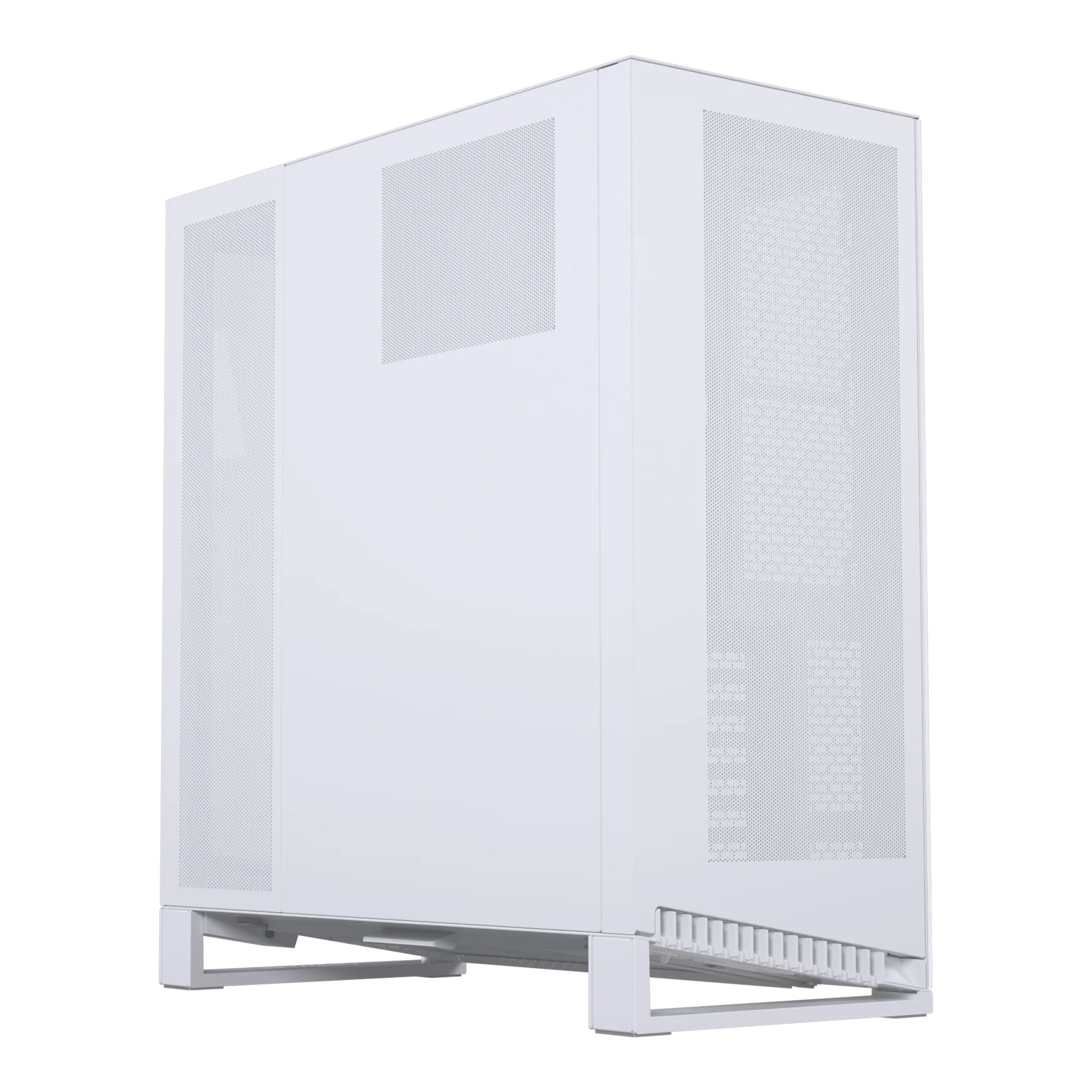

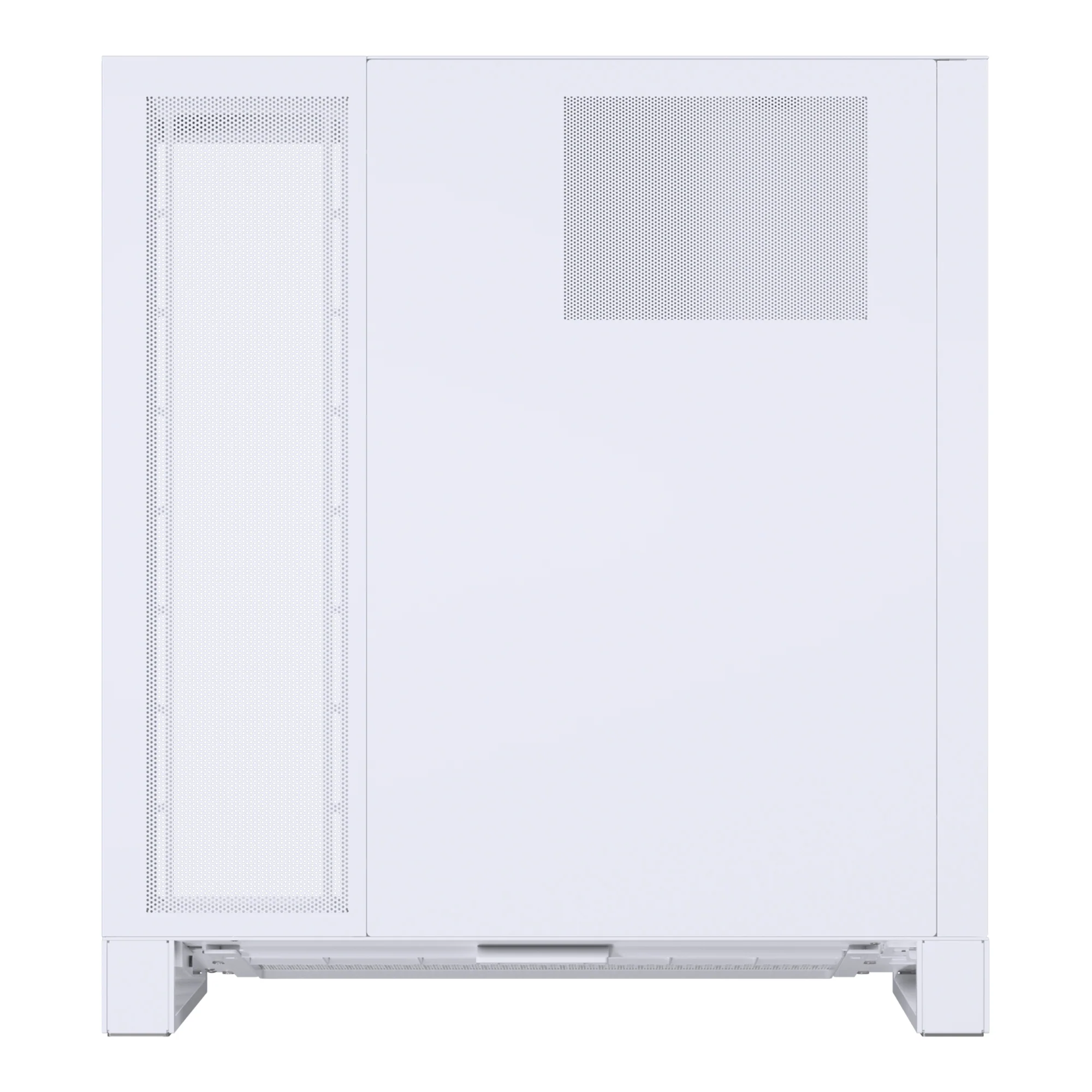

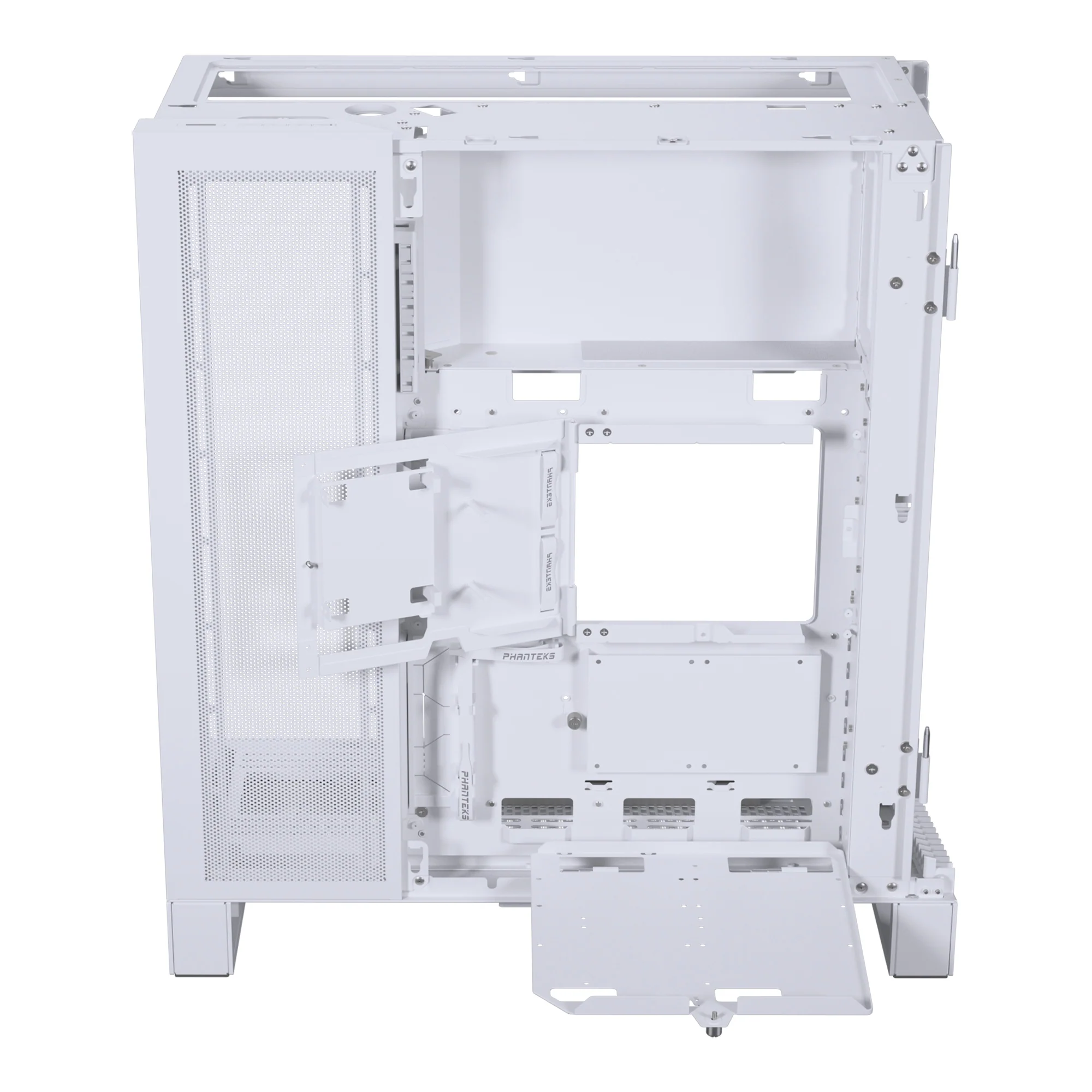

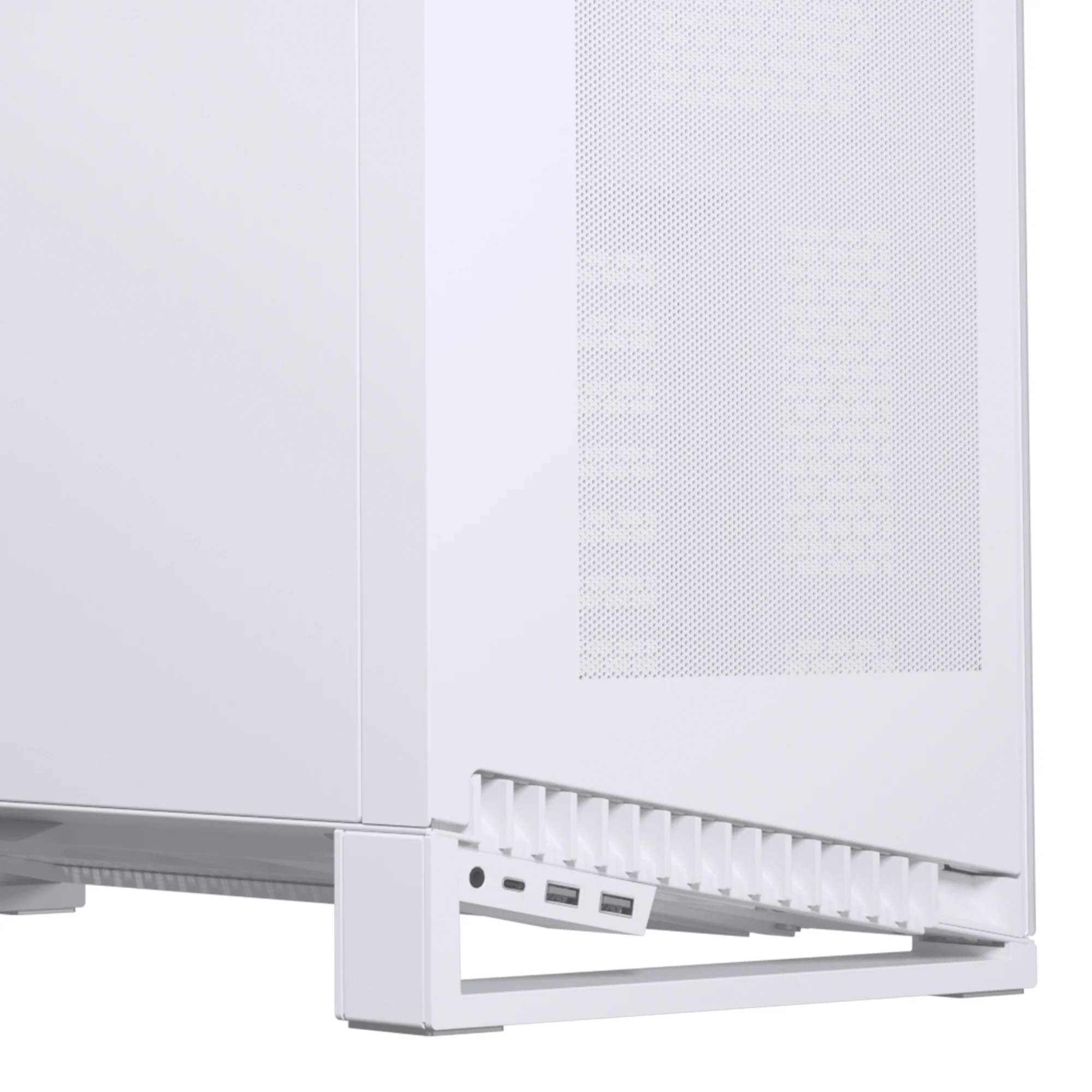

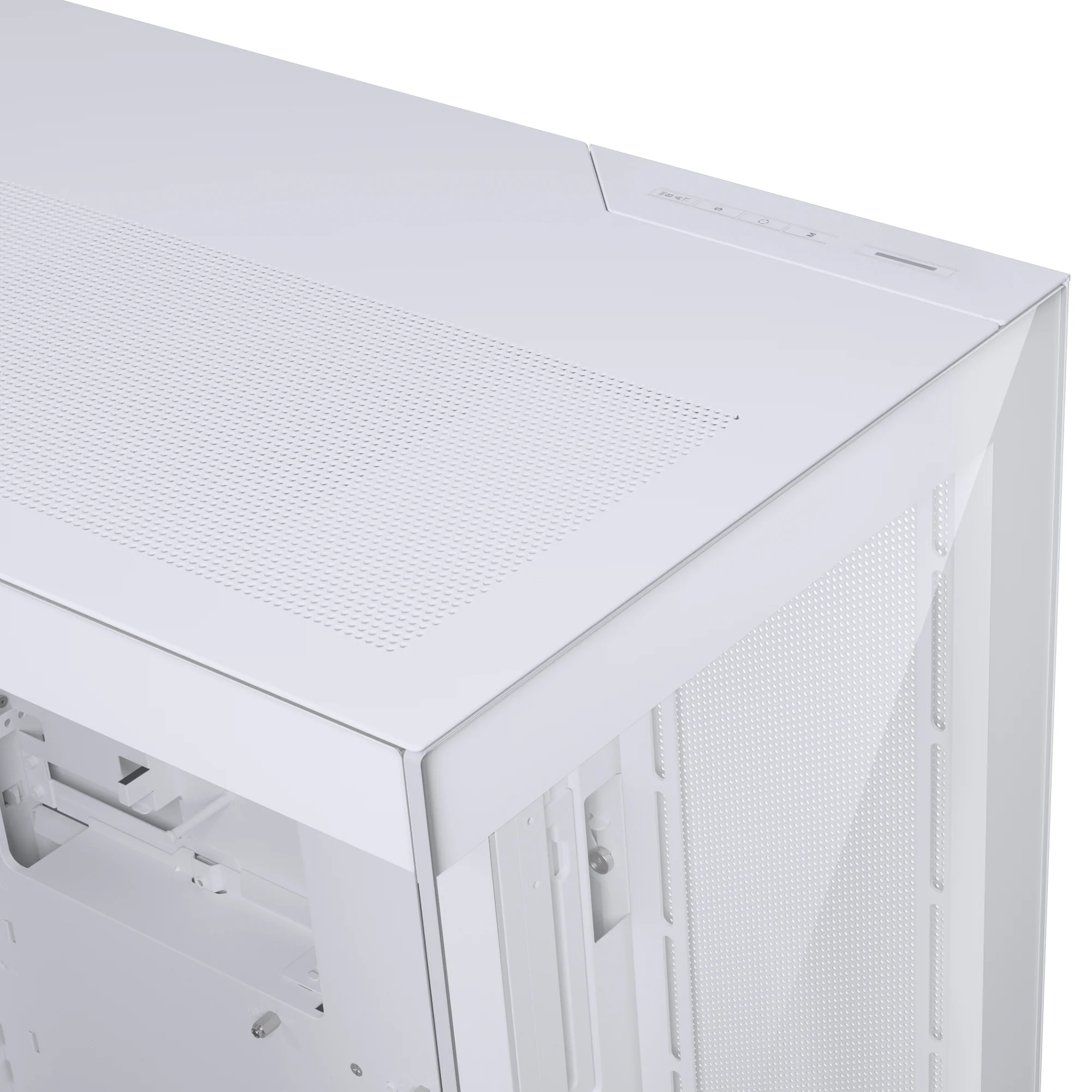

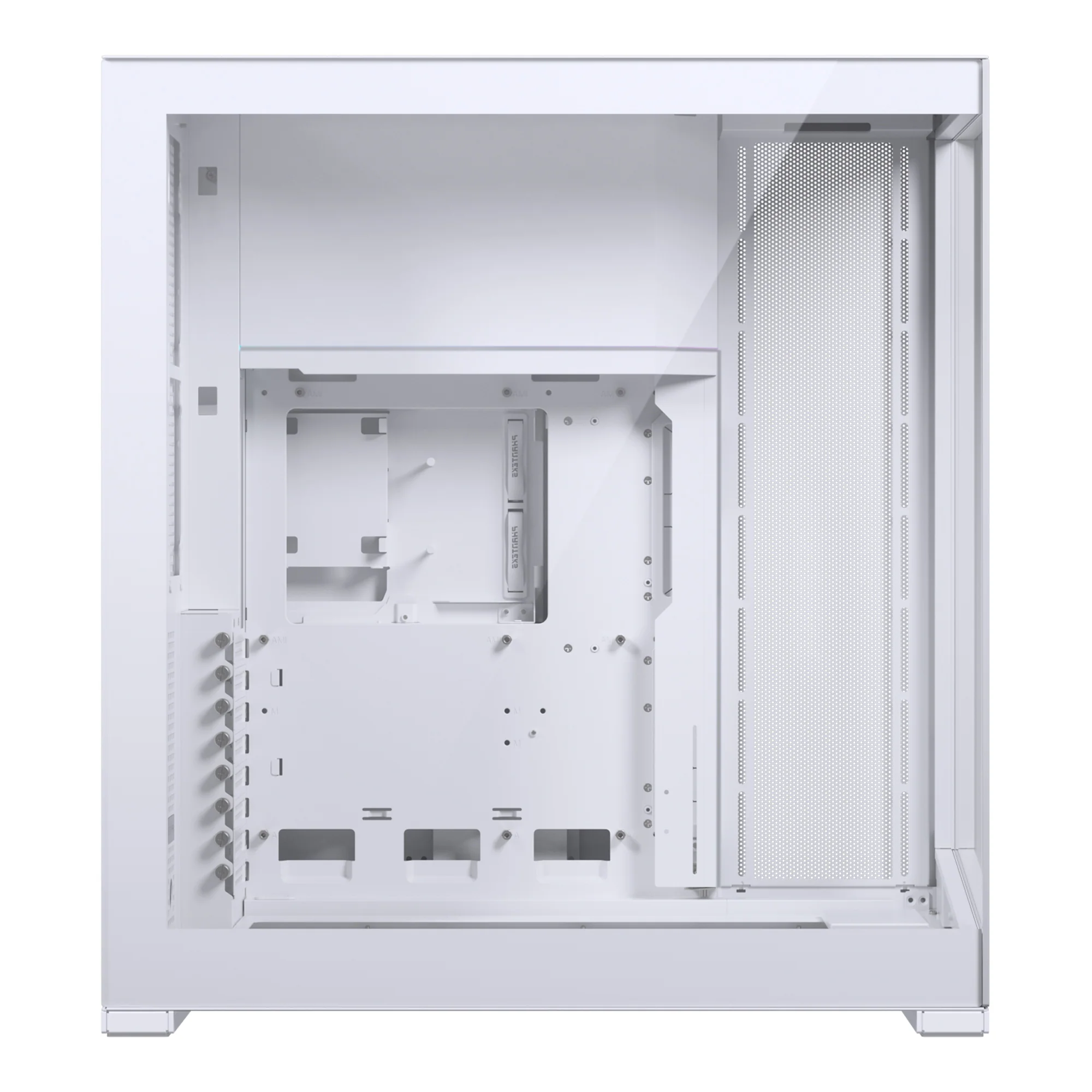

Phanteks NV7 White
The Phanteks NV7, with its unmistakable purpose design, highlights the system components with the motherboard at its center. One defining design element of the NV7 is its strong and defining outer frame that captures and accentuates the hardware components.
With a clean design from all sides, the NV7 allows you to place your system freely without the traditionally messy rear side. The glass panels offer a near-seamless view of the inside to further focus on the system components.
|
Case Specifications |
||
|
Dimension |
253 x 532 x 586 mm / 10.0 x 20.9 x 23.1 in (WxDxH) |
|
|
Form Factor |
Full Tower |
|
|
Material(s) |
Steel Chassis, Tempered Glass Window |
|
|
Mainboard Support |
ATX, micro-ATX, mini-ITX, SSI-CEB, E-ATX (up to 277mm wide with LED Cover) |
|
|
Rear Connect Motherboard |
No |
|
|
Front I/O |
2x USB 3.0, USB-C Gen2, Microphone/Headphone Combo, Power Button, D-RGB Mode, D-RGB Color, D-RGB Speed, D-RGB Channel |
|
|
Connectors |
Power Switch, 2x D-RGB Channel A, 2x D-RGB Channel B, HD-audio, USB 3.0, 2x SATA Power, USB 3.2 GEN 2 Type-E |
|
|
|
|
|
|
Expansion & Drive Bays |
||
|
Expansion Slots |
8 |
|
|
Vertical GPU Support |
Yes, with optional bracket PH-PGPUKT5.0 |
|
|
Internal 3.5” |
2x (1x if all SSD positions are used) |
|
|
Internal 2.5” |
6x (4x if both HDD positions are used) |
|
|
D-RGB Controller Output |
7A per Channel, 4A per port |
|
|
|
||
|
Cooling |
120mm (Fan) |
140mm (Fan) |
|
Top |
3x |
- |
|
Side |
4x |
- |
|
Rear |
2x |
- |
|
Bottom |
3x |
3x |
|
|
|
|
|
Liquid Cooling |
120mm (Radiator) |
140mm (Radiator) |
|
Top |
Up to 360 |
- |
|
Side |
Up to 360 |
- |
|
Rear |
Up to 240 |
- |
|
Bottom |
Up to 360 |
Up to 280 |
|
|
||
|
Clearance |
||
|
Graphic Card Length |
450mm | 17.71in |
|
|
CPU Cooler Height |
185mm | 7.28in |
|
|
PSU Length |
255mm | 10.03in |
|
|
Top Radiator |
132 x 440mm | 5.19 x 17.32in |
|
|
Side Radiator |
132 x 440 x 65mm | 5.19 x 17.32 x 2.55in |
|
|
Rear Radiator |
132 x 320mm | 5.19 x 12.59in |
|
Original: $199.99
-70%$199.99
$60.00More Images
Phanteks NV7 White
The Phanteks NV7, with its unmistakable purpose design, highlights the system components with the motherboard at its center. One defining design element of the NV7 is its strong and defining outer frame that captures and accentuates the hardware components.
With a clean design from all sides, the NV7 allows you to place your system freely without the traditionally messy rear side. The glass panels offer a near-seamless view of the inside to further focus on the system components.
|
Case Specifications |
||
|
Dimension |
253 x 532 x 586 mm / 10.0 x 20.9 x 23.1 in (WxDxH) |
|
|
Form Factor |
Full Tower |
|
|
Material(s) |
Steel Chassis, Tempered Glass Window |
|
|
Mainboard Support |
ATX, micro-ATX, mini-ITX, SSI-CEB, E-ATX (up to 277mm wide with LED Cover) |
|
|
Rear Connect Motherboard |
No |
|
|
Front I/O |
2x USB 3.0, USB-C Gen2, Microphone/Headphone Combo, Power Button, D-RGB Mode, D-RGB Color, D-RGB Speed, D-RGB Channel |
|
|
Connectors |
Power Switch, 2x D-RGB Channel A, 2x D-RGB Channel B, HD-audio, USB 3.0, 2x SATA Power, USB 3.2 GEN 2 Type-E |
|
|
|
|
|
|
Expansion & Drive Bays |
||
|
Expansion Slots |
8 |
|
|
Vertical GPU Support |
Yes, with optional bracket PH-PGPUKT5.0 |
|
|
Internal 3.5” |
2x (1x if all SSD positions are used) |
|
|
Internal 2.5” |
6x (4x if both HDD positions are used) |
|
|
D-RGB Controller Output |
7A per Channel, 4A per port |
|
|
|
||
|
Cooling |
120mm (Fan) |
140mm (Fan) |
|
Top |
3x |
- |
|
Side |
4x |
- |
|
Rear |
2x |
- |
|
Bottom |
3x |
3x |
|
|
|
|
|
Liquid Cooling |
120mm (Radiator) |
140mm (Radiator) |
|
Top |
Up to 360 |
- |
|
Side |
Up to 360 |
- |
|
Rear |
Up to 240 |
- |
|
Bottom |
Up to 360 |
Up to 280 |
|
|
||
|
Clearance |
||
|
Graphic Card Length |
450mm | 17.71in |
|
|
CPU Cooler Height |
185mm | 7.28in |
|
|
PSU Length |
255mm | 10.03in |
|
|
Top Radiator |
132 x 440mm | 5.19 x 17.32in |
|
|
Side Radiator |
132 x 440 x 65mm | 5.19 x 17.32 x 2.55in |
|
|
Rear Radiator |
132 x 320mm | 5.19 x 12.59in |
|
