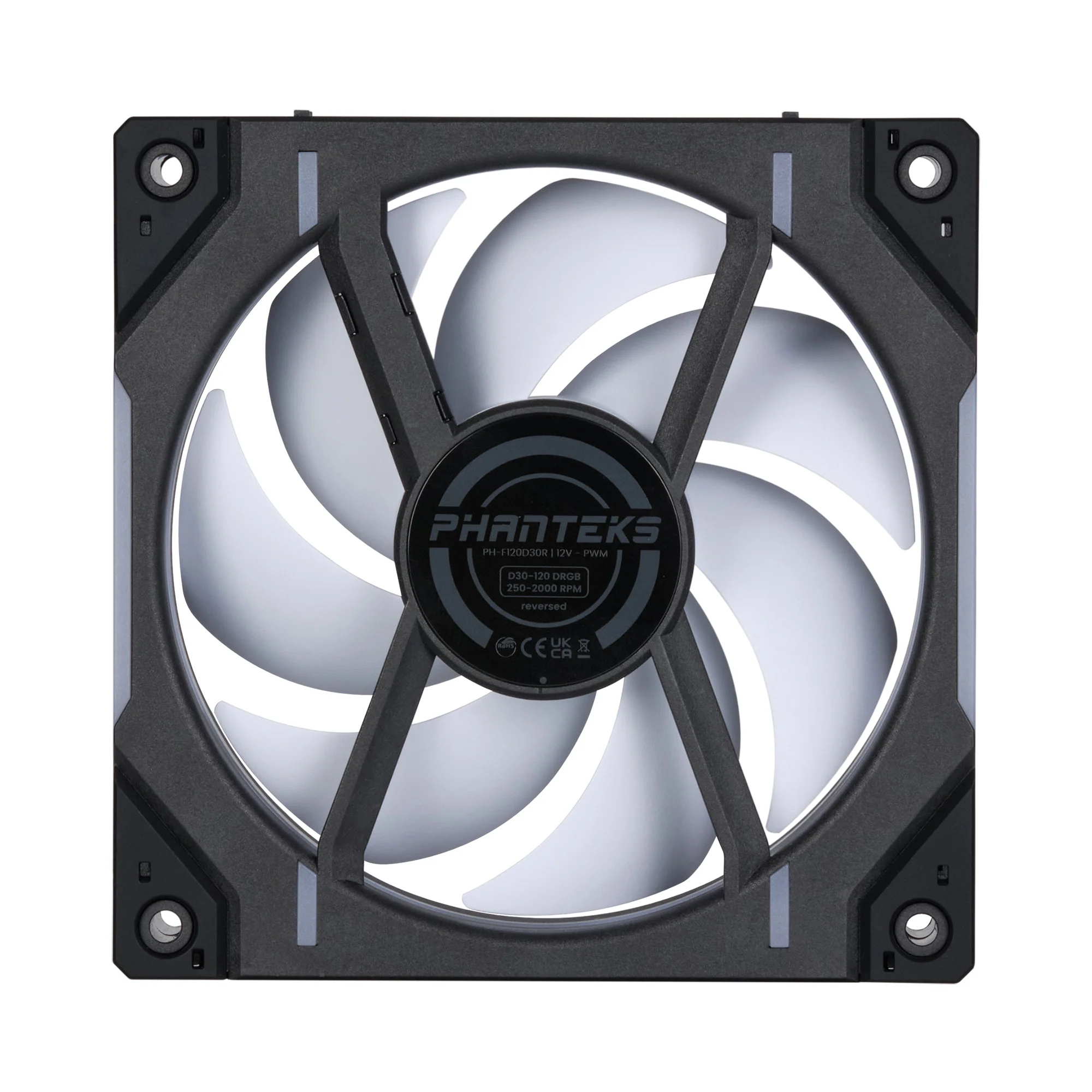

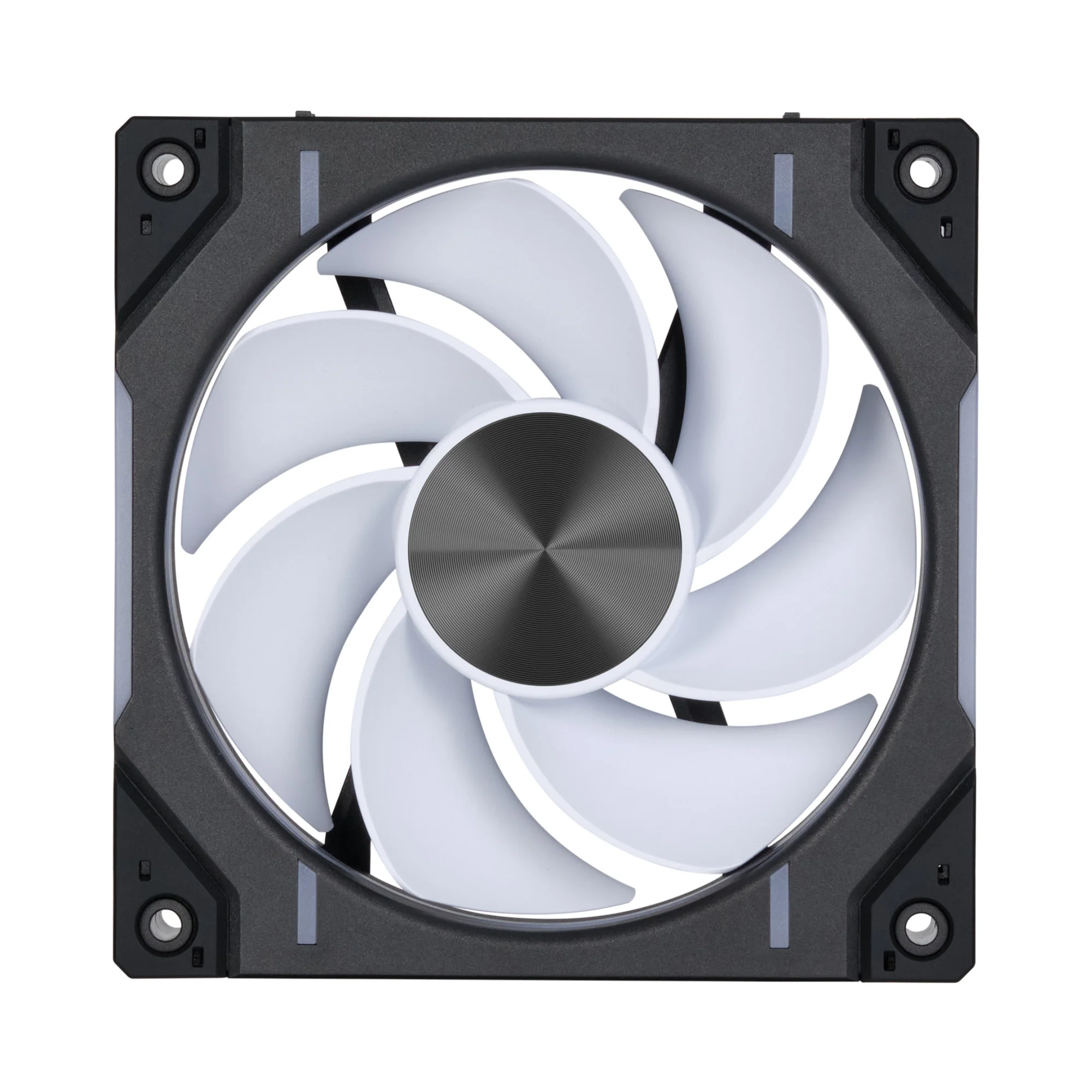

Phanteks D30-120 D-RGB Fan

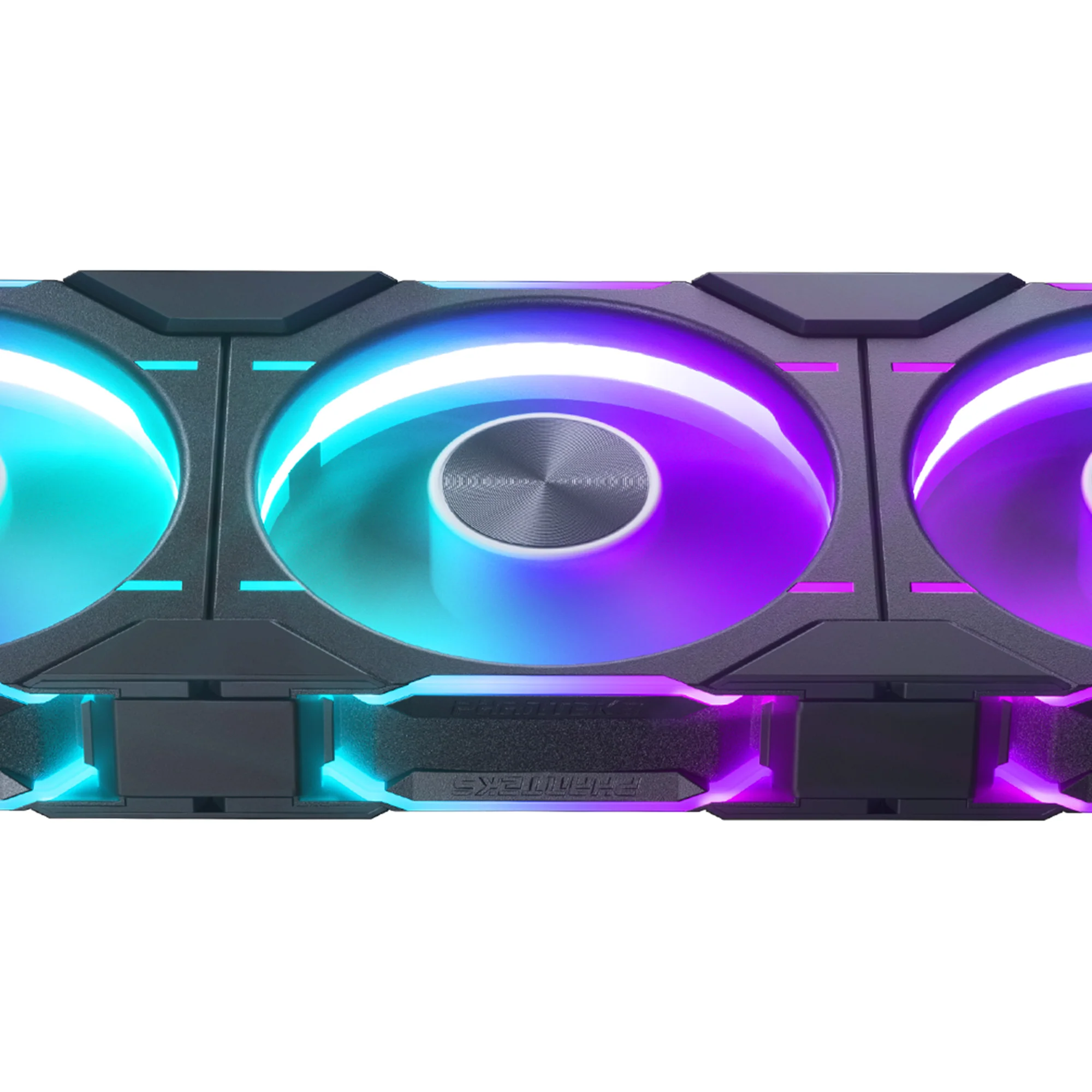

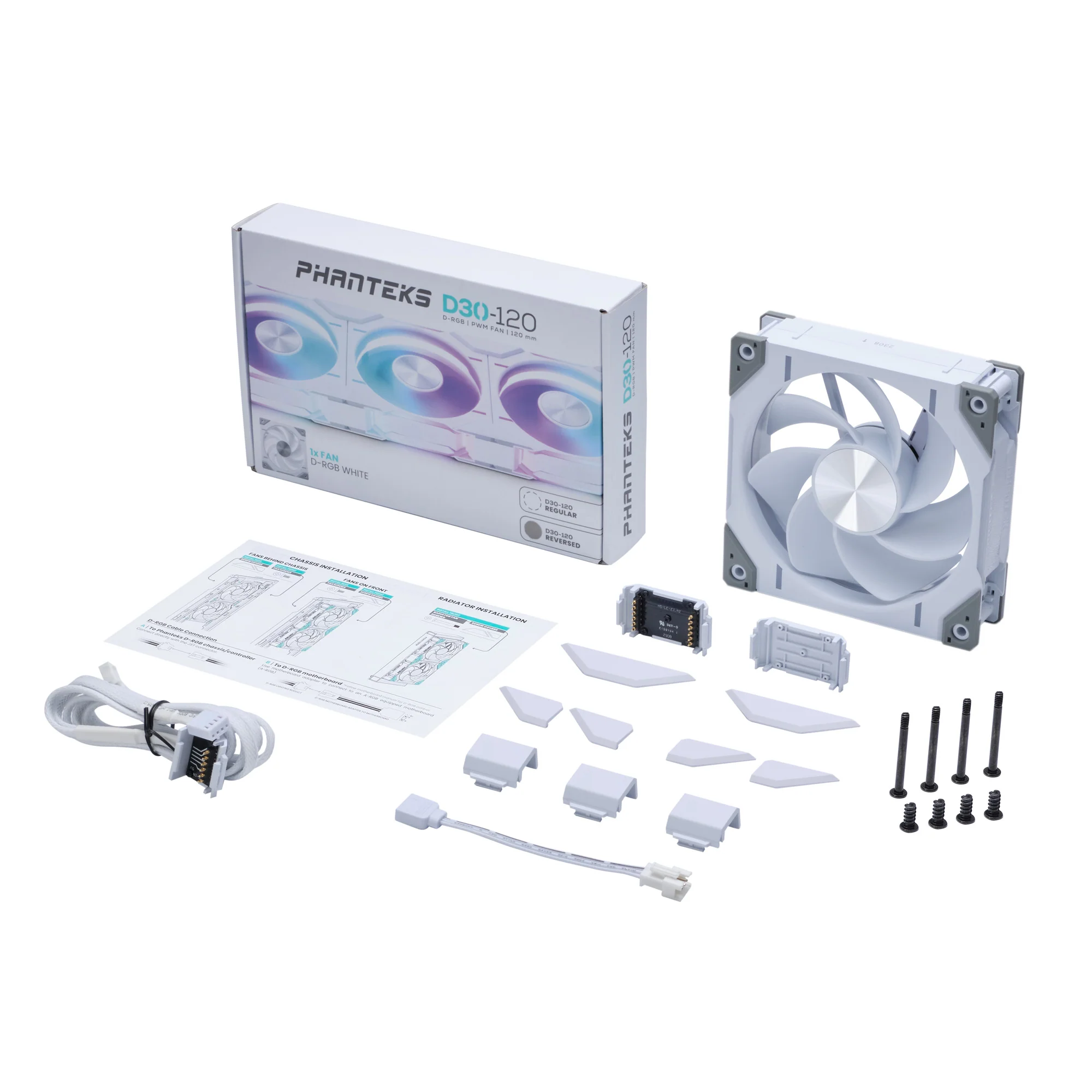

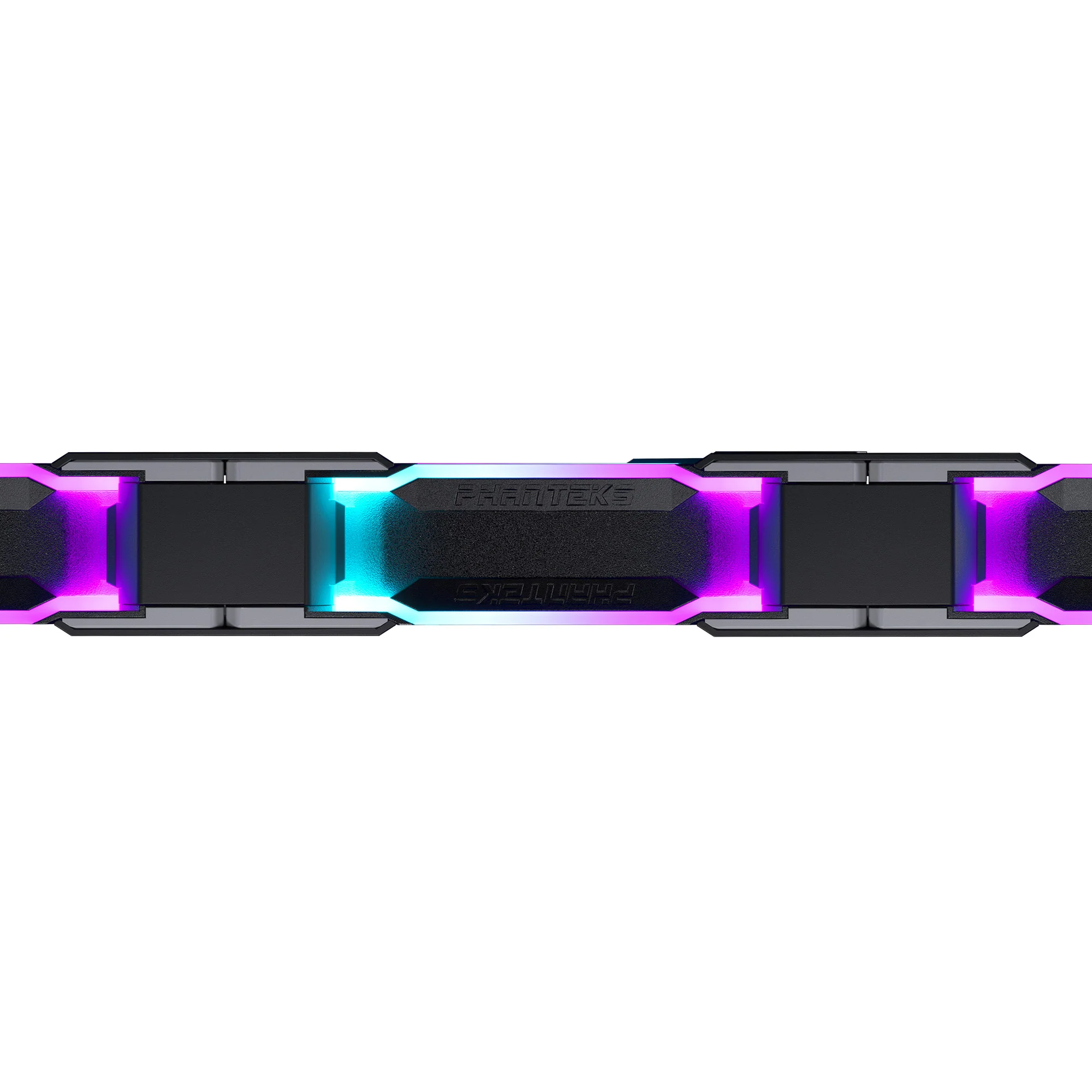

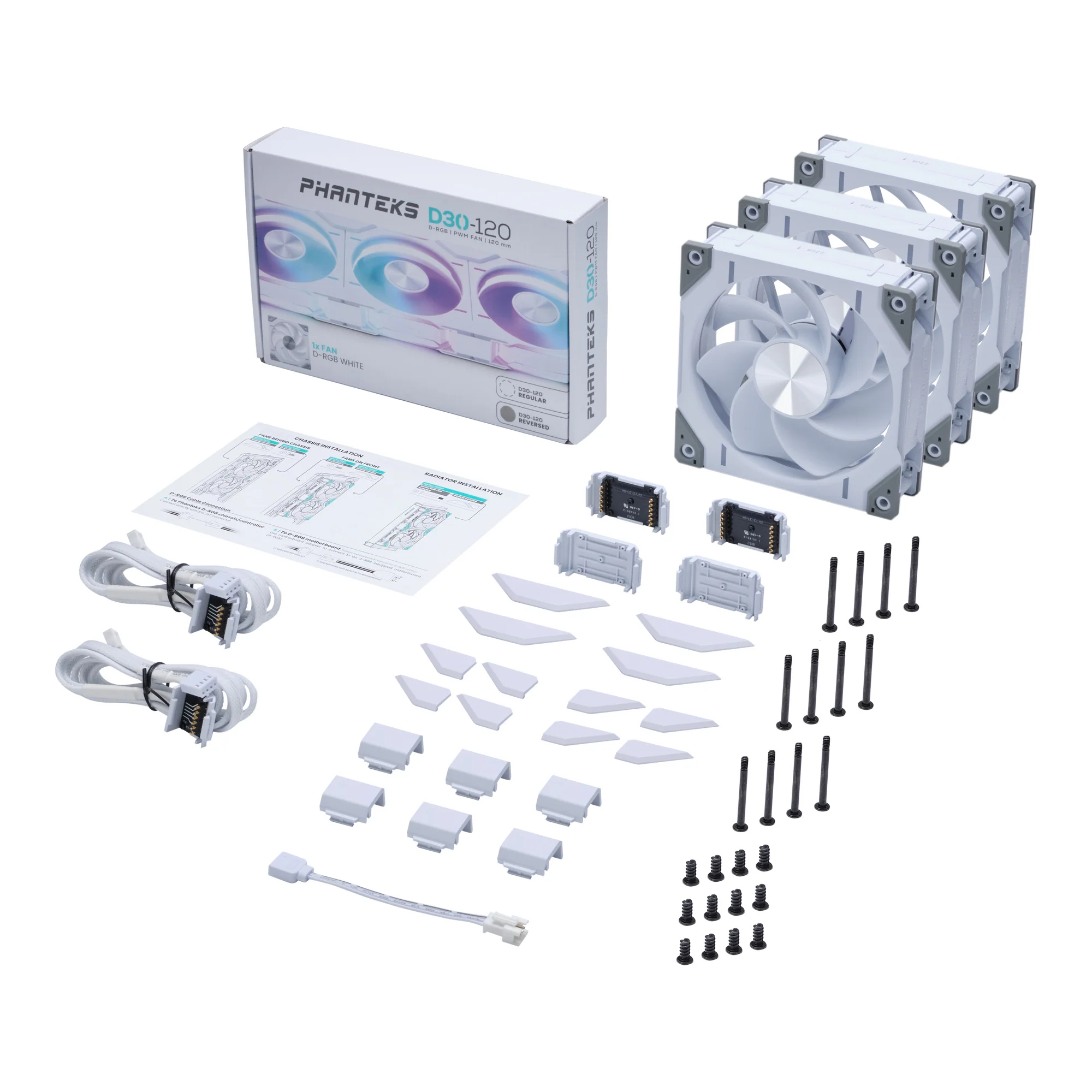

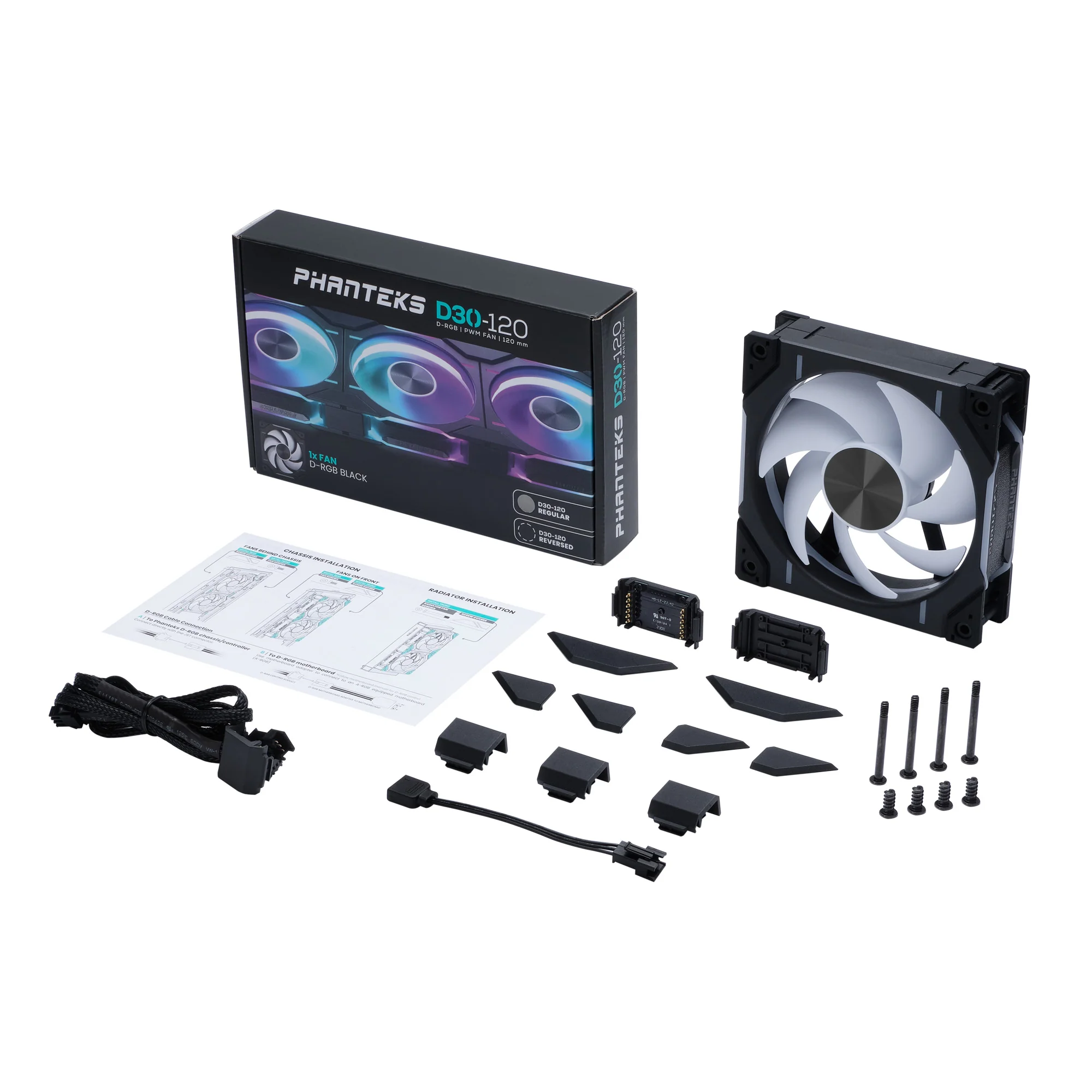

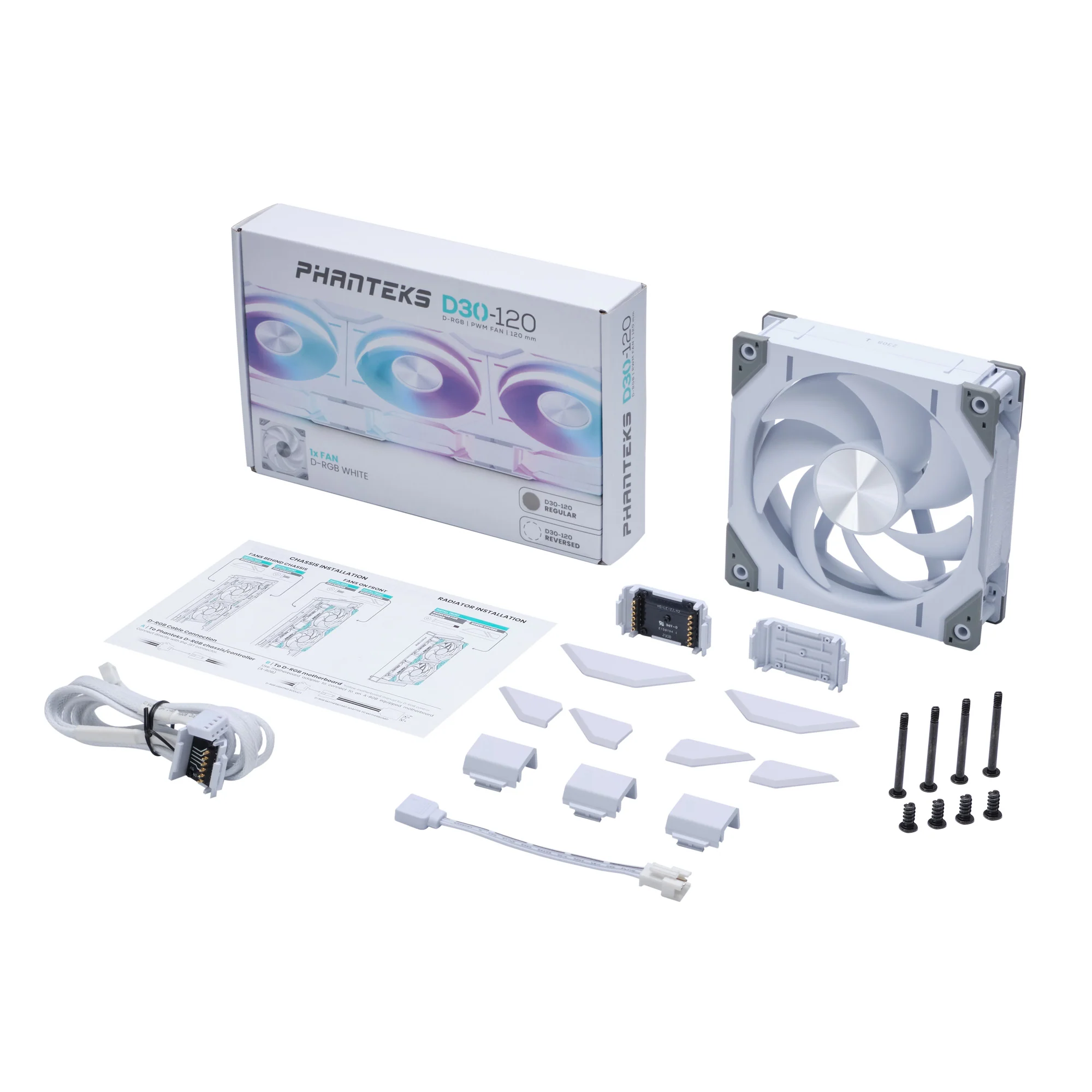

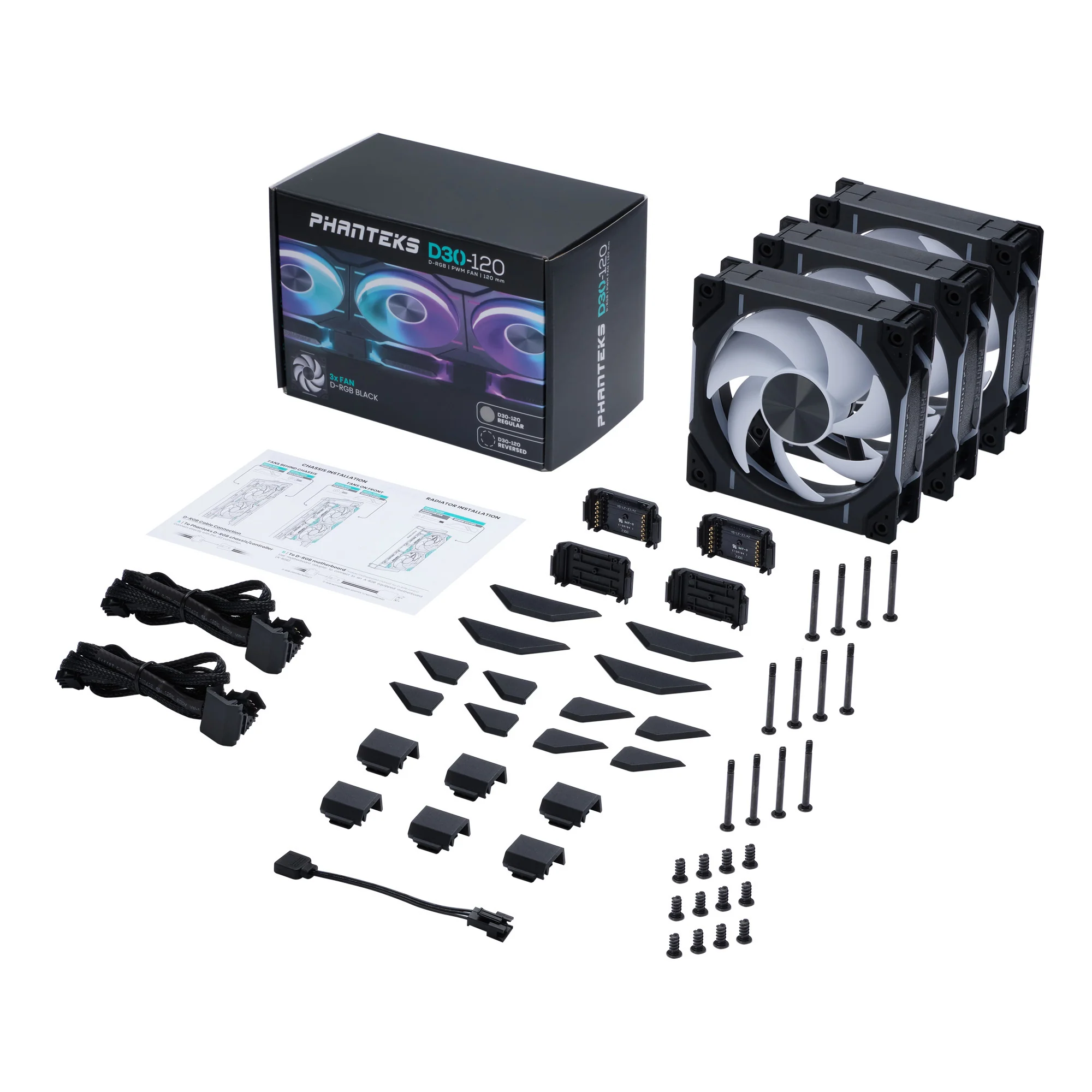

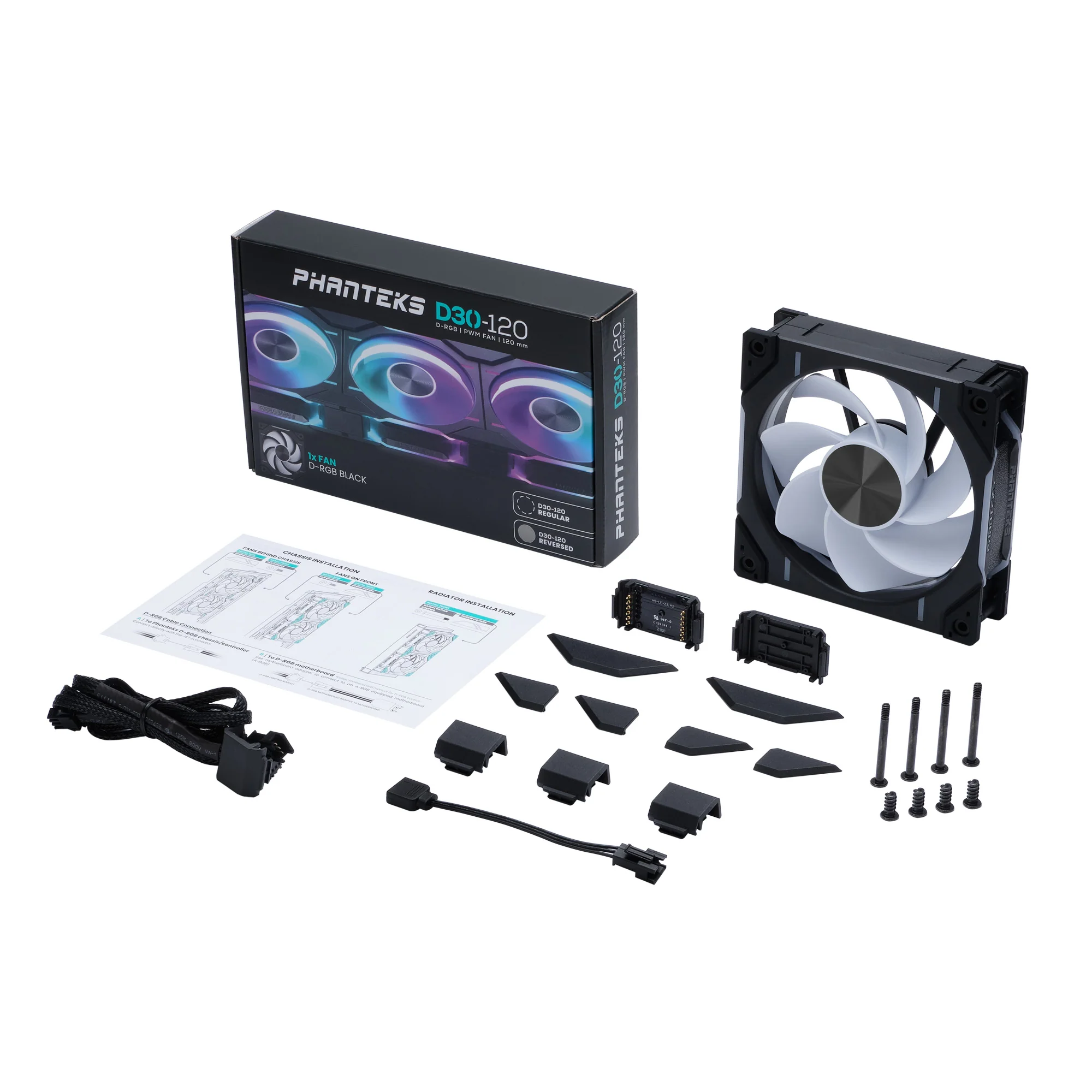

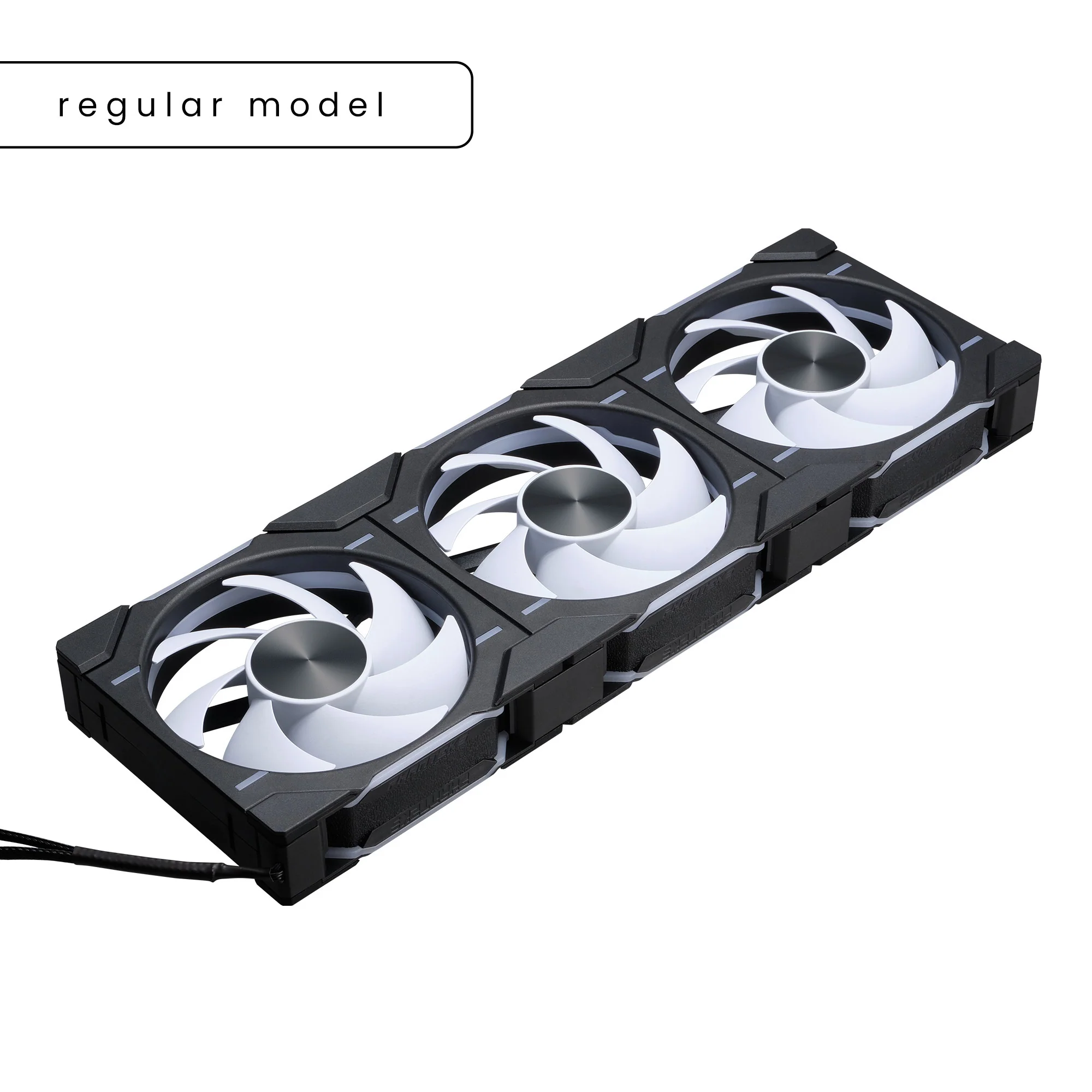

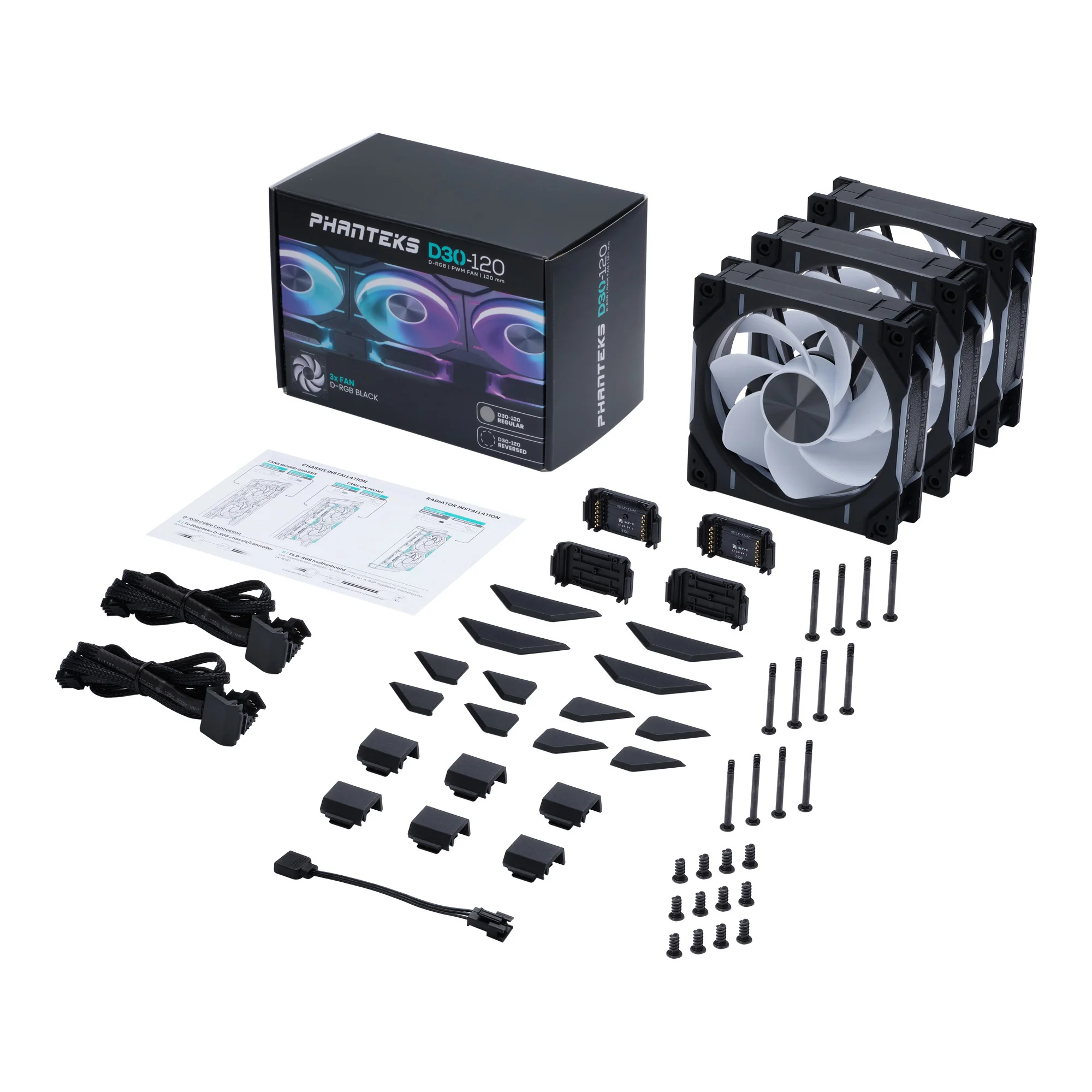

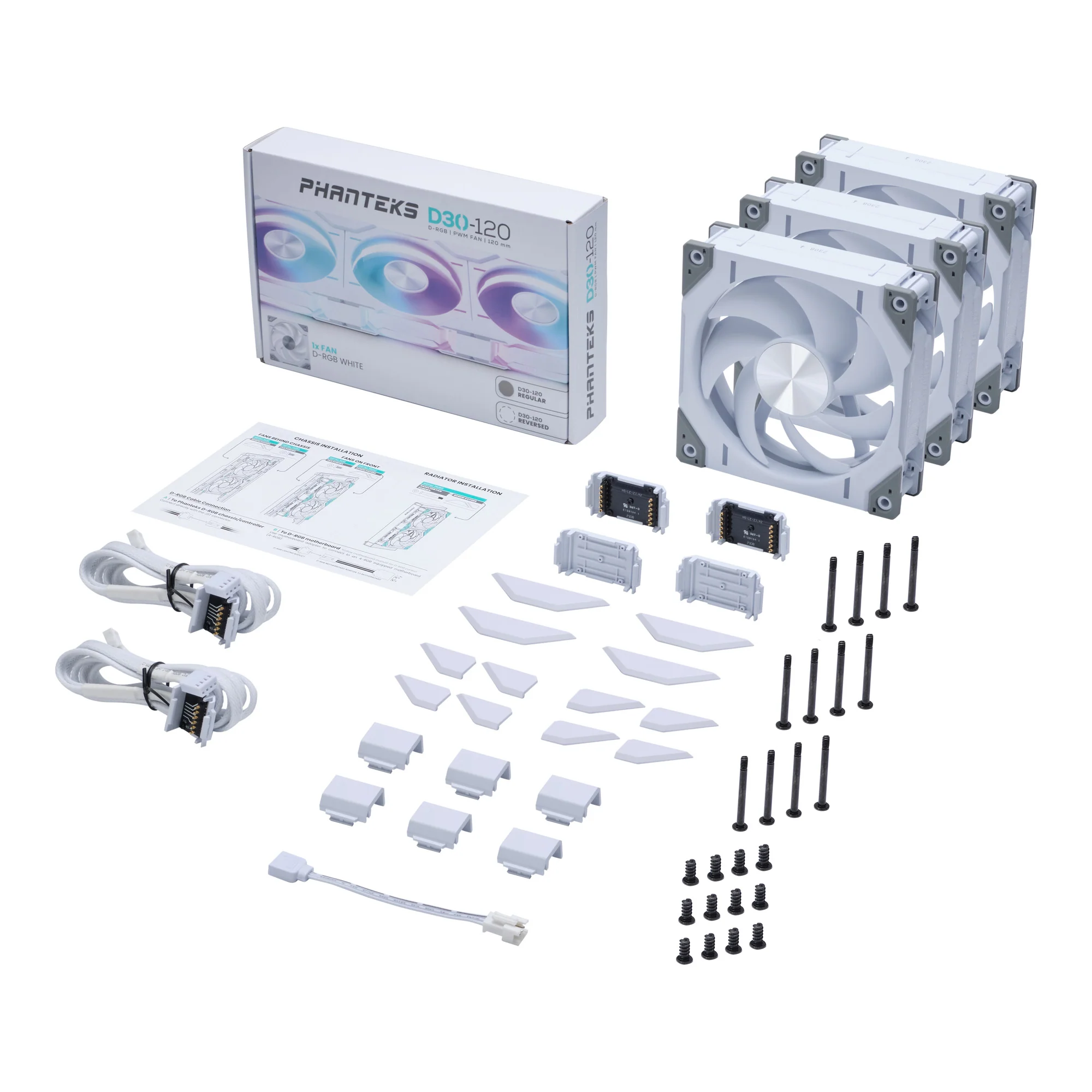

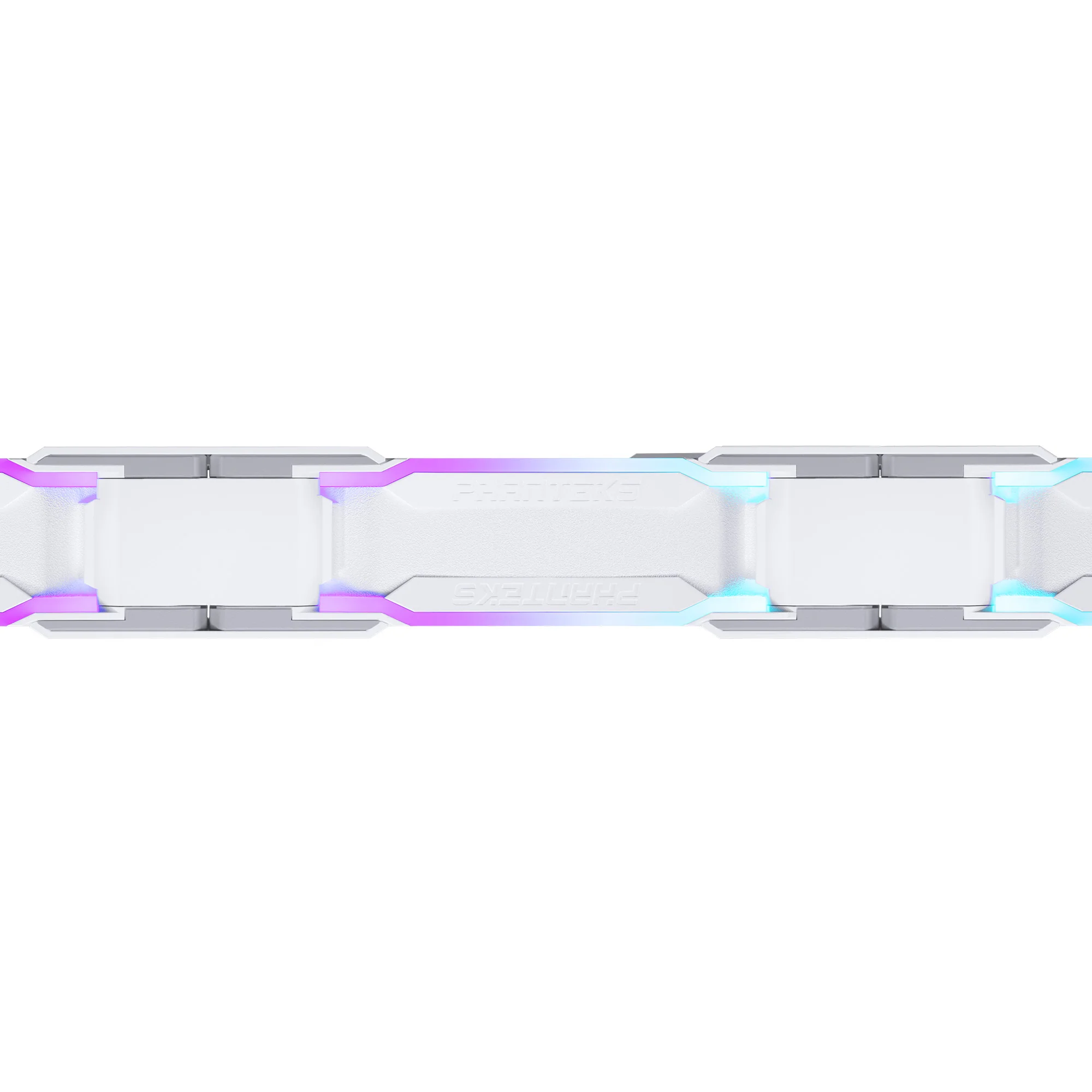

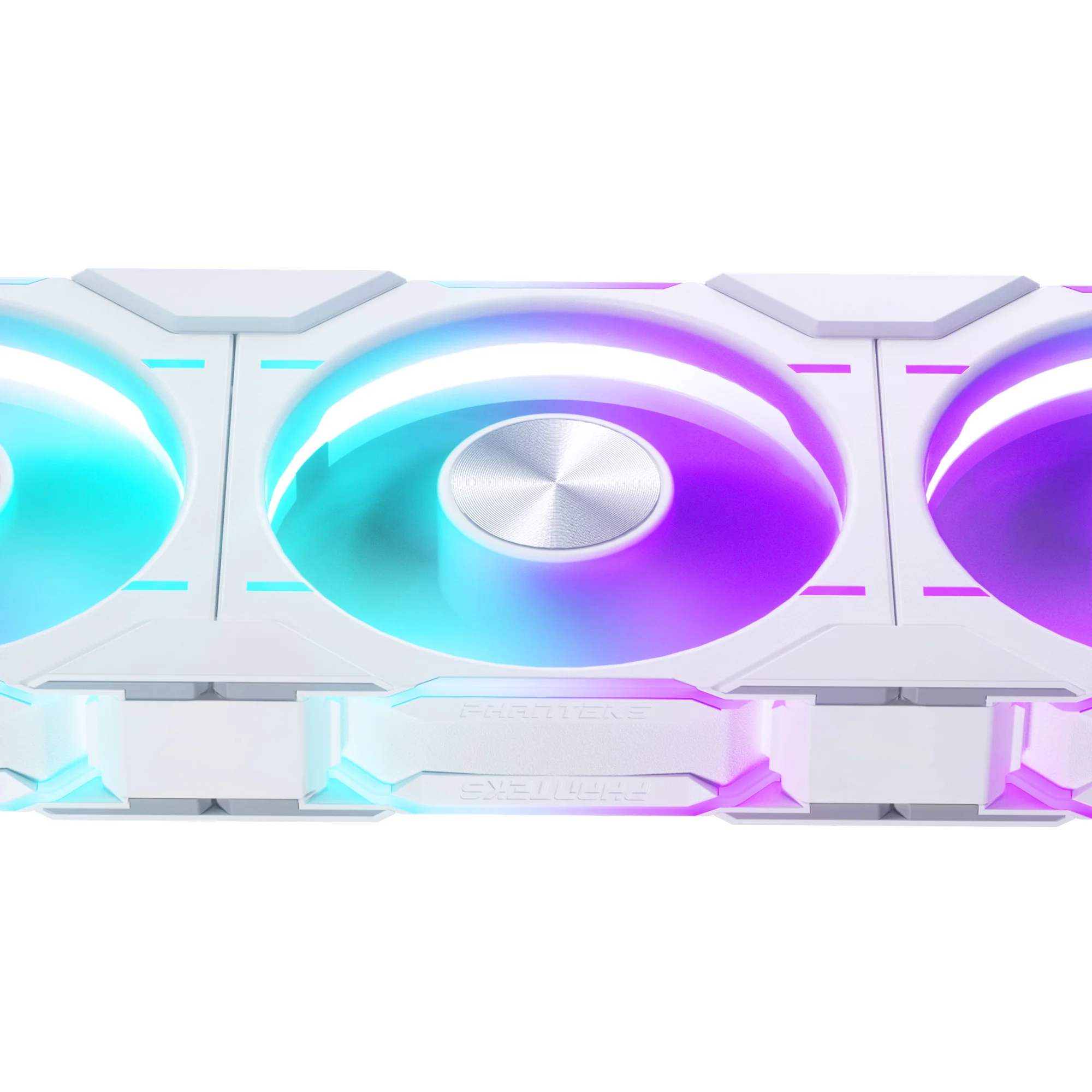

- Easy and clean fan linking system: Linking multiple fans together reduces cable clutter considerably while the screw cover plates, and bridge connectors make multiple D30 fans work as one clean unit.
- The D-RGB lighting is integrated and visible from all sides of the D30-120 fan. The blades reflect the light coming from the Halos lighting ring inside the frame. Compatible with Digital-RGB equipped motherboards and Phanteks Digital-RGB products.
- 30 mm of performance: On a radiator or behind restrictive mesh/dust filters, the 30 mm thick frame and blades provide plenty of air pressure to keep things cool.
Description:
The Phanteks D30-120 comes equipped with integrated D-RGB lighting throughout its frame and blades on all sides. Multiple D30-120 fan frames can be linked together as one with bridge connectors and screw cover plates to reduce cables, resulting in extremely clean builds.

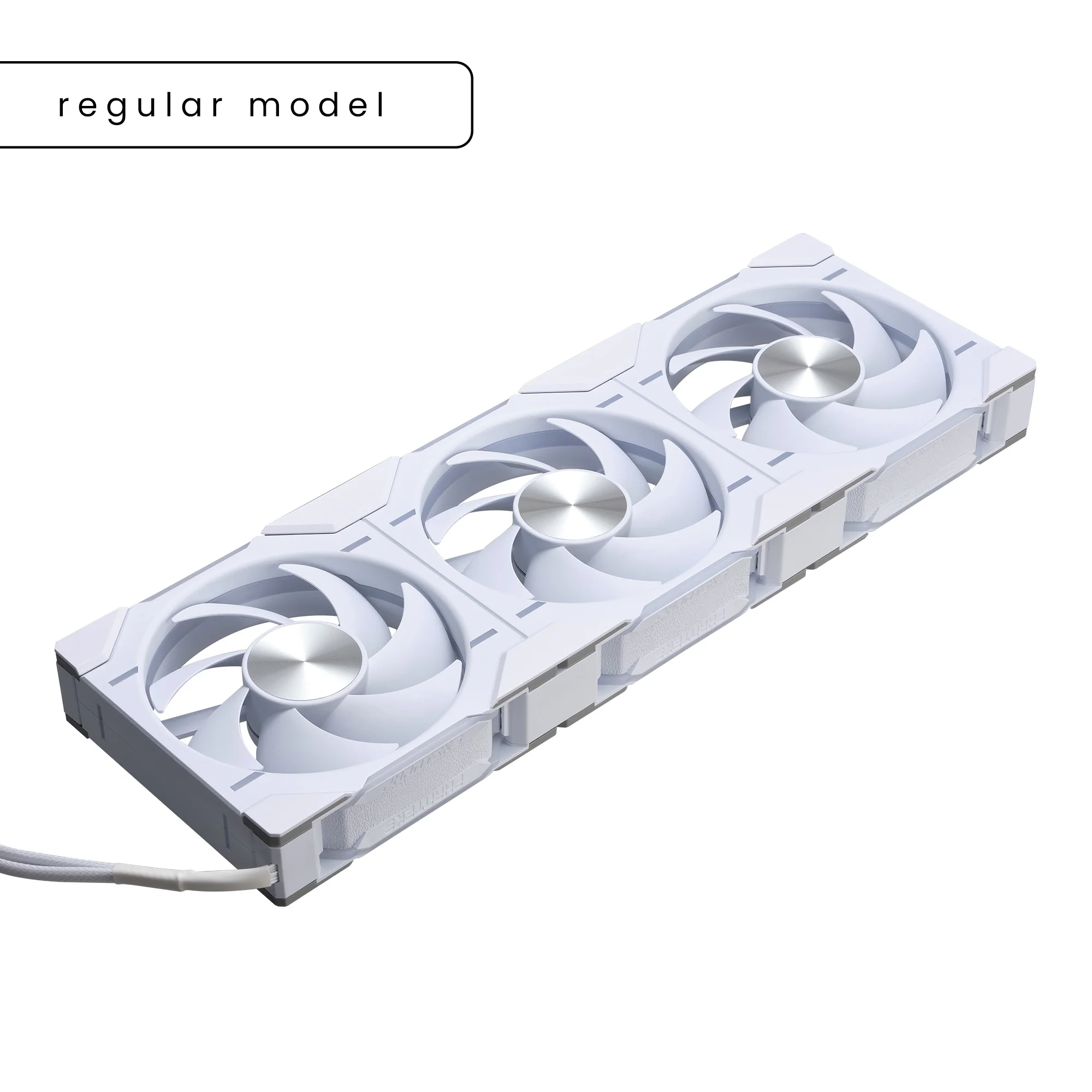

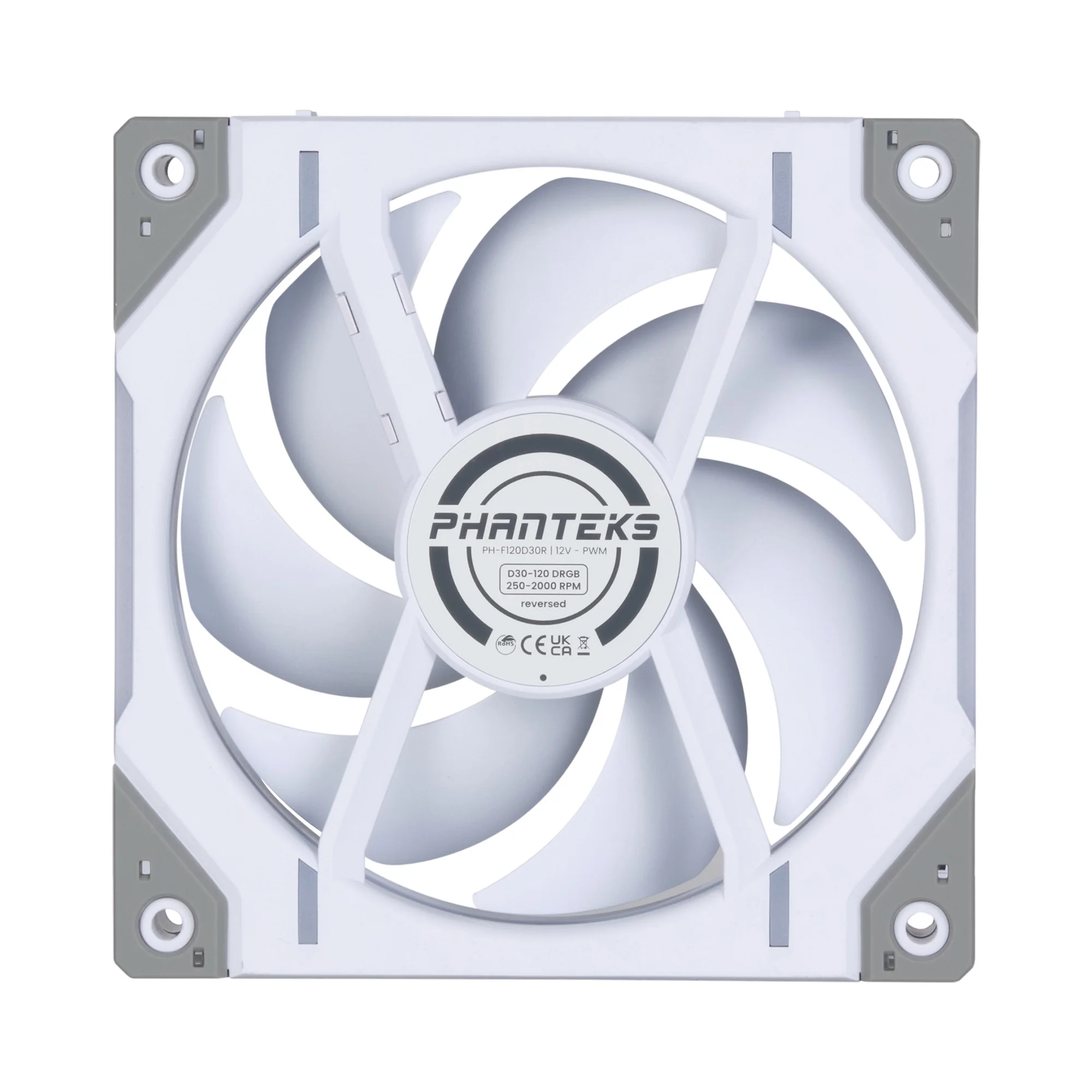

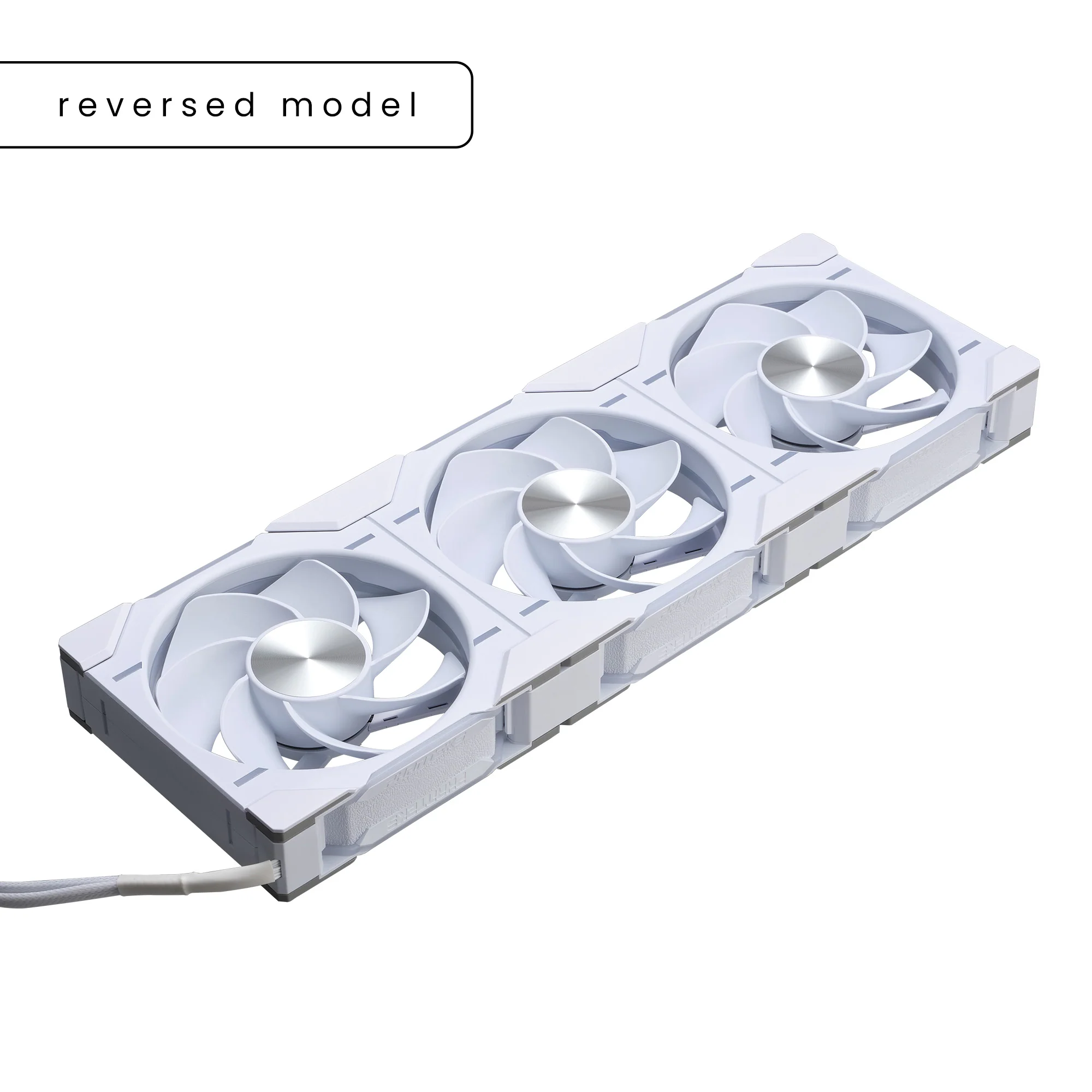

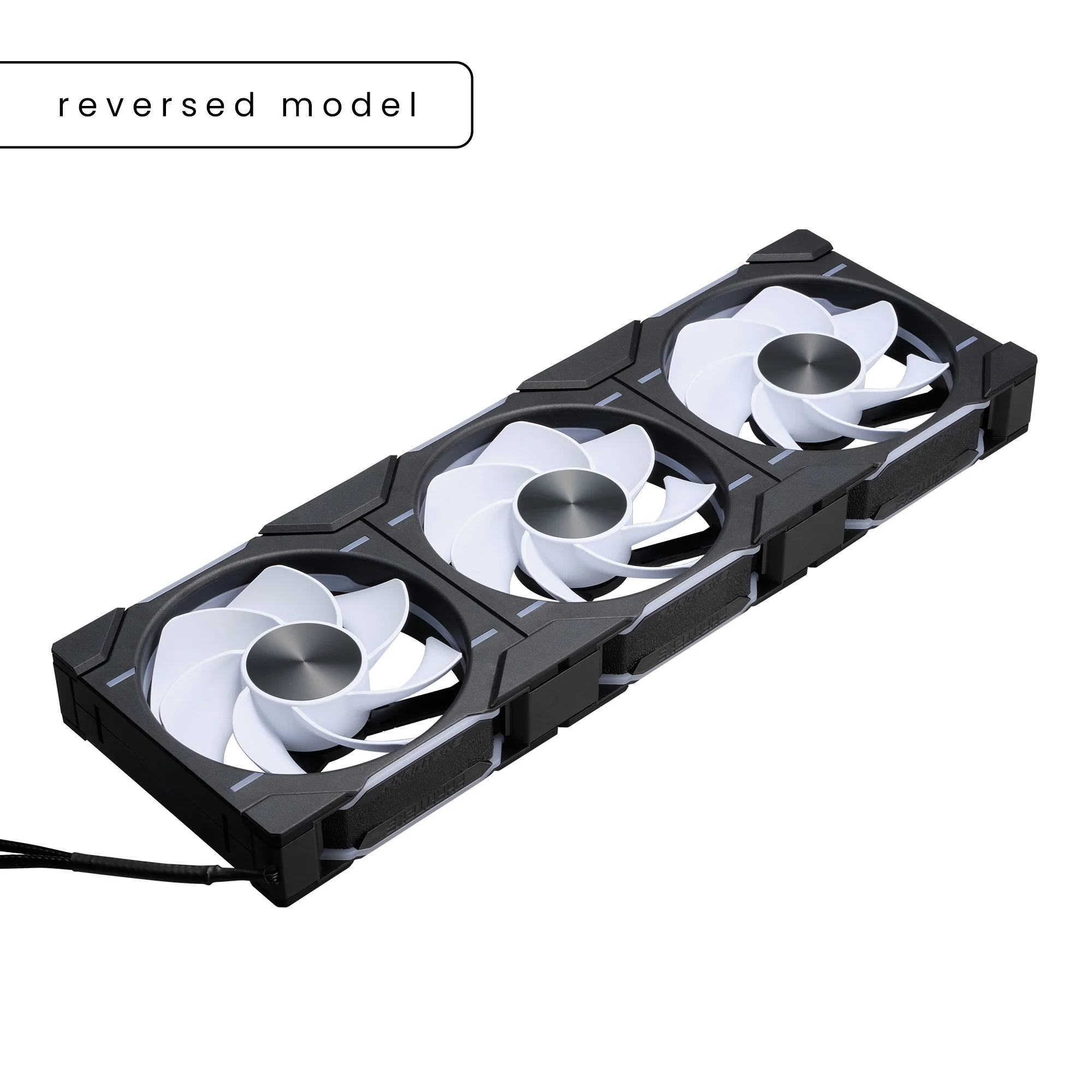

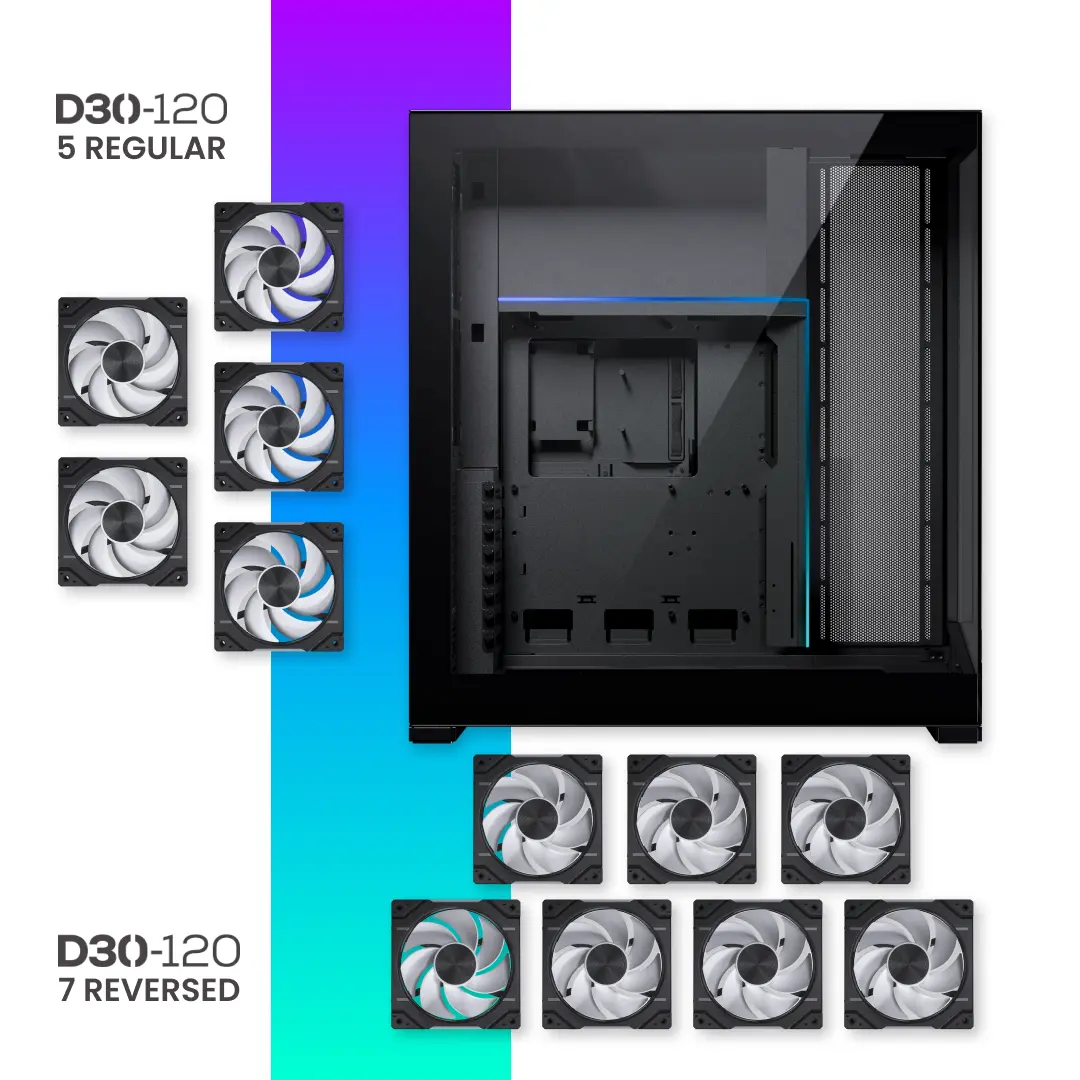

The D30-120 combines premium D-RGB lighting with 30 mm thick and aerodynamic fan blades inspired by the ultimate T30 fan, which makes it a true premium D-RGB fan for modern systems. The D30-120 comes in two airflow direction models, regular and reversed. This unique option allows for the ultimate fan configuration for any system.
|
Brand |
Phanteks |
|
Model |
PH-F120D30_DRGB_PWM_BK01 |
|
Type |
Case Fan |
|
Wind Direction |
Regular |
|
Color |
White Matte blade / Black Fan Frame |
|
Materials: |
PBT (Polybutylene terephthalate) |
|
Fan Size |
120 x 120 x 30 mm |
|
Bearing Type |
FDB (Fluid Dynamic Bearing) |
|
Blade Geometry |
Seven Blades Design- White Matte |
|
Rated Voltage |
FAN: 12V LED: 5V |
|
Operating Voltage Range |
5~13.2V |
|
PWM |
Yes |
|
Rated Current (Ampere) |
0.15A LED:0.45A(Max) |
|
Locked Current |
Polarity Protection |
|
Power Consumption |
≦1.8W |
|
Speed |
250-2000±10% RPM |
|
Max. Airflow |
64.3 CFM |
|
Max. Air Pressure |
3.01 mm H2O |
|
Noise Level |
30.2 dB(A) |
|
Fan Connector |
4-Pin PWN |
|
Fan Cable Length |
700 mm / 27.56 in |
|
D-RGB Connector |
3-Pin JST Daisy-chain |
|
D-RGB Cable Length |
600+100 mm / 23.62+3.94 in |
|
LED Number |
30 (D-RGB) |
|
LED Rated Voltage |
DC 5V (+5V/D/GND) |
|
LED Rated Current |
Max:0.45A |
|
MTBF (Life Expectance) |
50,000hrs at 40℃ |
Original: $39.99
-70%$39.99
$12.00More Images
